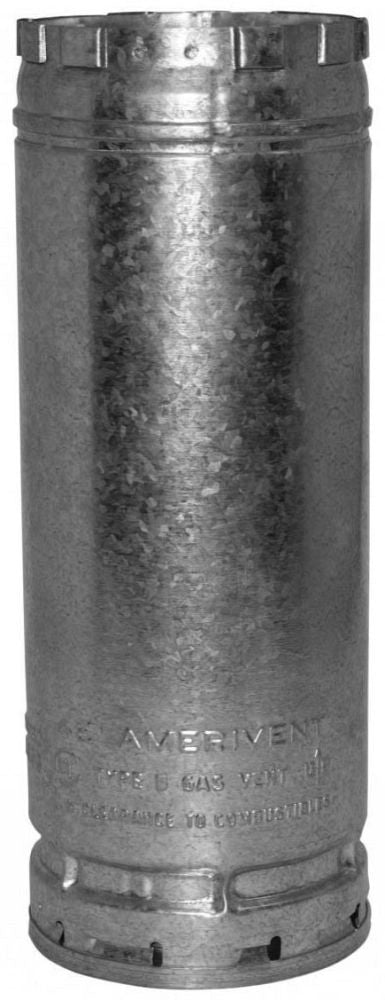

Hart Cooley 10r12 Type B Vent Round Pipe 10 in 1 Ft

Product Description

The HART COOLEY 10r12 is a double-wall Type B vent round pipe designed for Category 1 gas appliance venting applications. Measuring 10 inches in diameter and 1 foot in length, it features an aluminum inner wall and a galvanized steel outer wall. This construction provides the thermal performance and corrosion resistance required for natural-draft, fan-assisted Category 1 appliances such as gas furnaces, boilers, and water heaters. Licensed HVAC technicians and plumbers install this pipe as part of a complete B-vent system routed through conditioned or unconditioned spaces.

This pipe section is suited for residential and light commercial installations where Category 1 venting is required. The 10-inch diameter accommodates higher-capacity appliances that produce larger flue gas volumes. It connects with compatible B-vent fittings, elbows, and terminations to form a continuous venting assembly from the appliance collar to the exterior termination cap.

Key Features

• Double-wall construction with aluminum inner wall for corrosion resistance against flue condensate
• Galvanized outer wall provides structural durability and heat dissipation
• 10-inch diameter supports high-capacity Category 1 appliance venting
• 1-foot section length allows precise layout and fitting within tight chases
• Round pipe shape ensures consistent airflow and compatibility with standard B-vent components

Compatibility

Designed for use in Category 1 gas appliance venting systems requiring Type B double-wall round vent pipe with a 10-inch diameter.

Installation Notes

Installation must be performed by a qualified HVAC technician or licensed plumber in accordance with the appliance manufacturer instructions, NFPA 54, and applicable local mechanical codes. Shut off the gas supply and allow the appliance to cool completely before servicing or extending any vent section. Maintain required clearances to combustibles as specified by the vent system manufacturer and local authority having jurisdiction. Do not mix B-vent components from different manufacturers within the same vent assembly unless listed for combined use.

Technical Specifications

• Vent Category: Category 1
• Pipe Type: Type B Double Wall
• Pipe Shape: Round
• Diameter: 10 inches
• Length: 12 inches (1 foot)
• Inner Material: Aluminum
• Outer Material: Galvanized Steel
• Weight: 3.75 pounds

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 10r12
