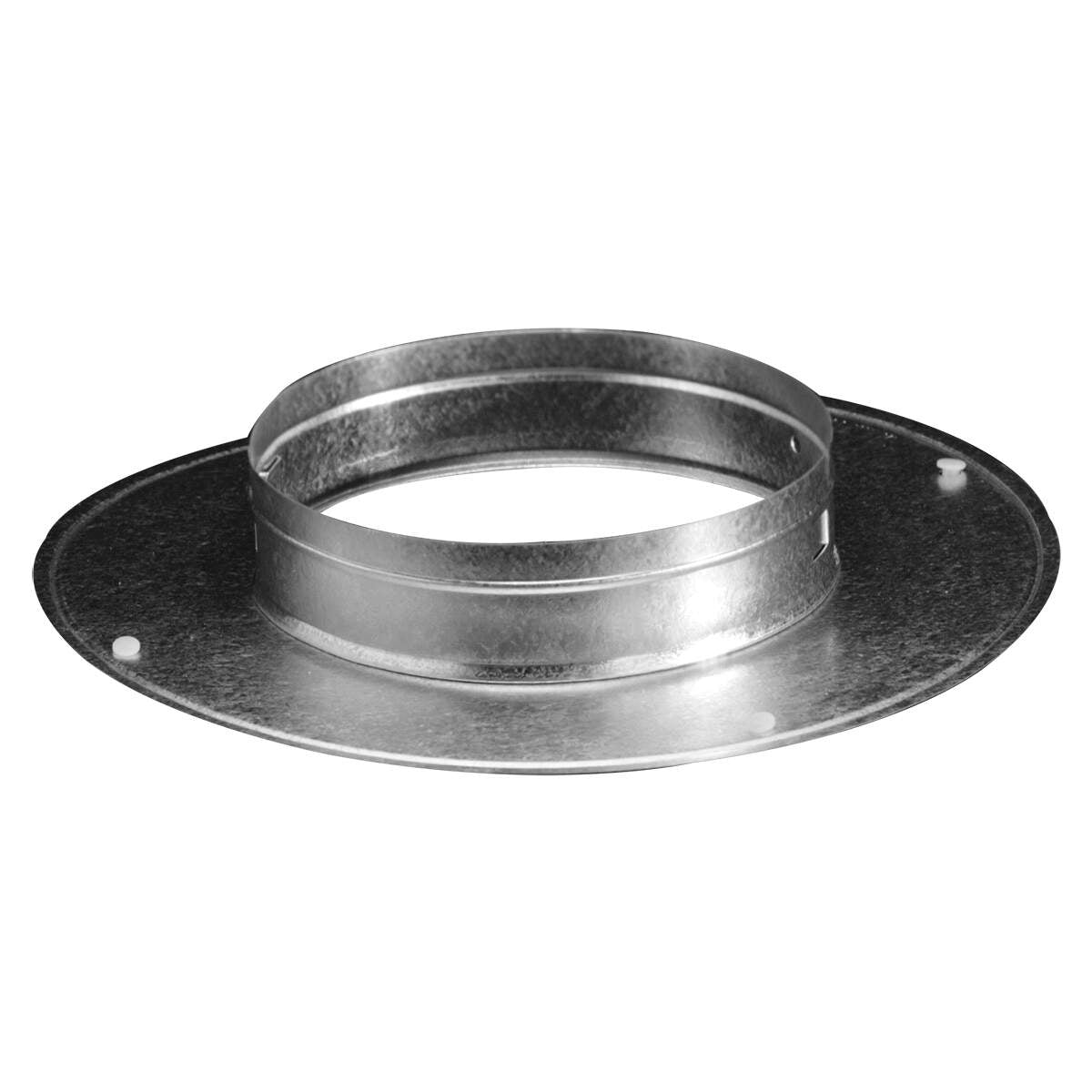

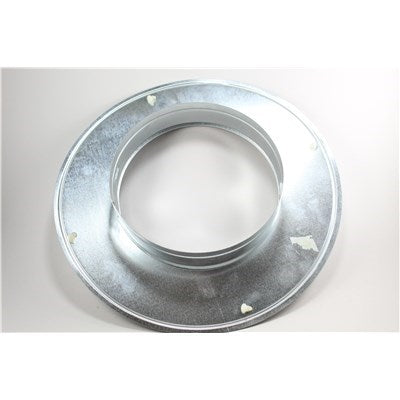

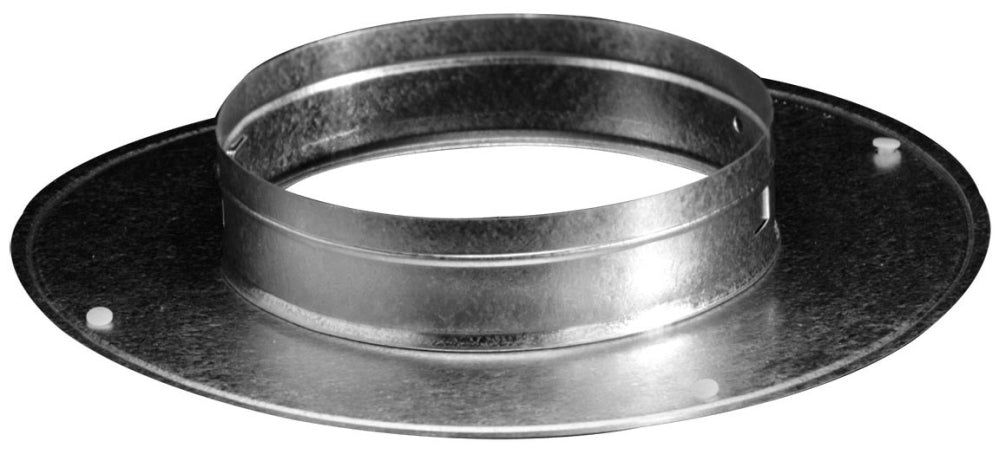

Hart & Cooley 050312 Hc5408 Ring Collar 8 inches

Product Description

The HART & COOLEY 050312 HC5408 ring collar features a unique snap-in design for easy installation. The 2-inch high collar permits easy flex connection. It is made of galvanized steel and has a bead on the collar that improves strength and provides retention for flexible duct connection. The collar is used on a 3800 T-Bar diffuser for commercial applications.

• Unique snap-in design for easy installation
• 2 Inch high collar permits easy flex connection
• Bead on collar improves the strength and provides retention for flexible duct connection

Product Highlights

Galvanized steel ring collar with snap-in design for easy installation and secure duct connections.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 050312
• Country of Origin: US

Technical Specifications

• CATALOG NUMBER: 050312
• Category: HVAC/R & Fans
• Description: T-Bar Ring Collar; Type Round, Snap-In; Size 8 Inch; Material Thickness 0.018 Inch; Material Galvanized Steel; Inclusions/Features Bead, Push Clip; Outer Diameter 14 Inch; Used On 3800 T-Bar Diffuser; Application Commercial
• Features/Benefits: Unique Snap-In Design for Easy Installation; 2 Inch High Collar Permit Easy Flex Connection; Bead on Collar Improve the Strength and Provides Retention for Flexible Duct Connection; Push Clip Mount the Collar to Pre-Punched Back Panel Hole
• Inclusions Features: Bead, Push Clip
• Manufacturer Name: Hart & Cooley
• Material: Galvanized Steel
• Material Thickness: 0.018 Inch
• Series/Model: 5400
• Size: 8 Inch
• Type: Round, Snap-In
• UNSPSC Code: 40141900
• UPC: 684048503121
• Manufacturer Part Number: 5408
• PDW VEN ALTERNATIVE DESCRPTION: 5408
• Additional Information: Outer Diameter 14 Inch; Used On 3800 T-Bar Diffuser; Application Commercial
• Country of Origin: US
• Diameter: 14 in
• Domestic/Import: Domestic
• Finish: Galvanized
• Brand: HART & COOLEY By duravent
• Composition: Steel
• Flanged: true
• Galvanized: true
• Gauge: 26 GA
• Product Family: 540
• Prop 65: false
• Shape: Round
• UOM: EA
