Hart & Cooley 043168 Hc 650 24 x 10 Wall Grille

Product Description

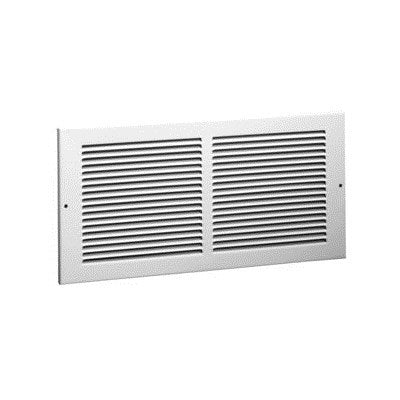

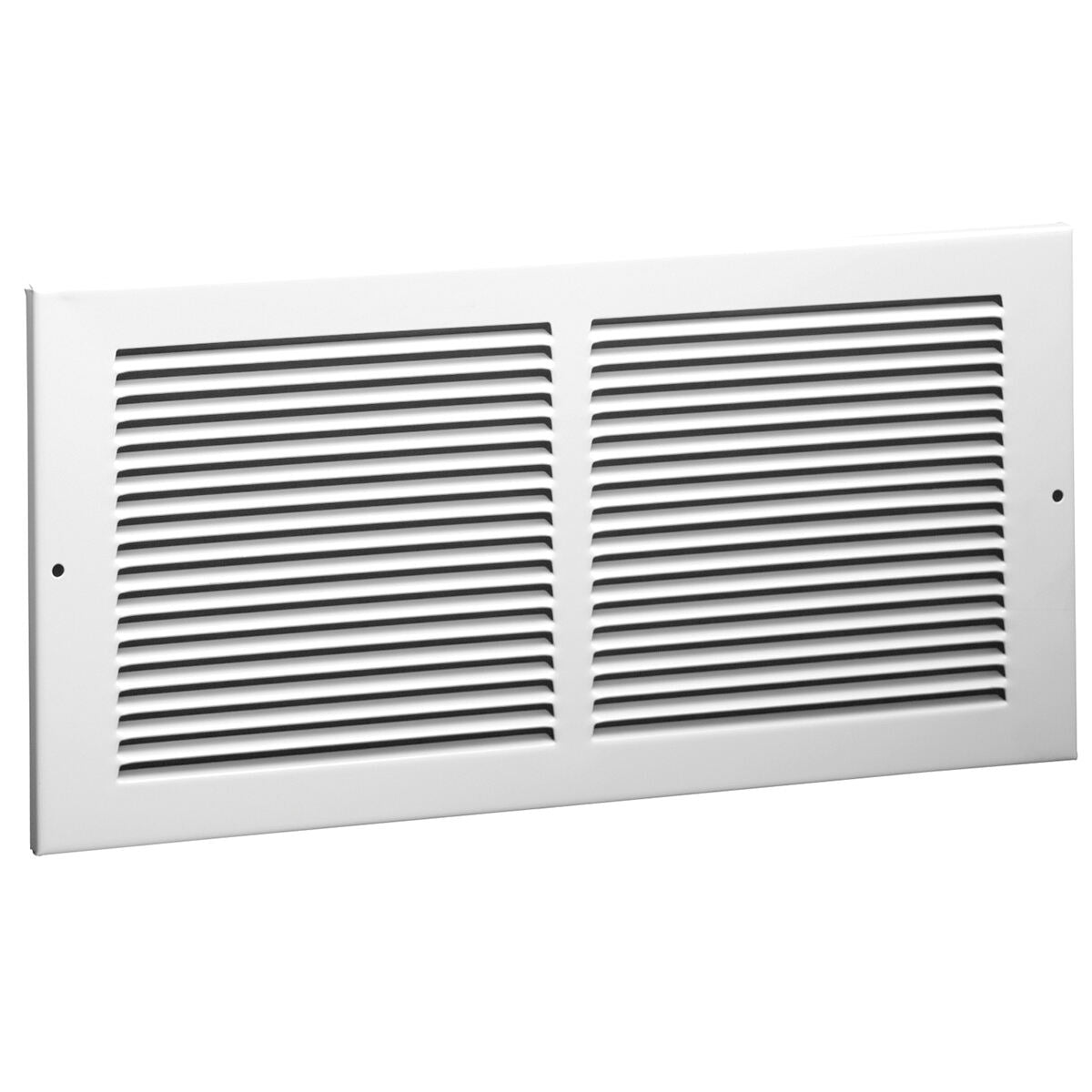

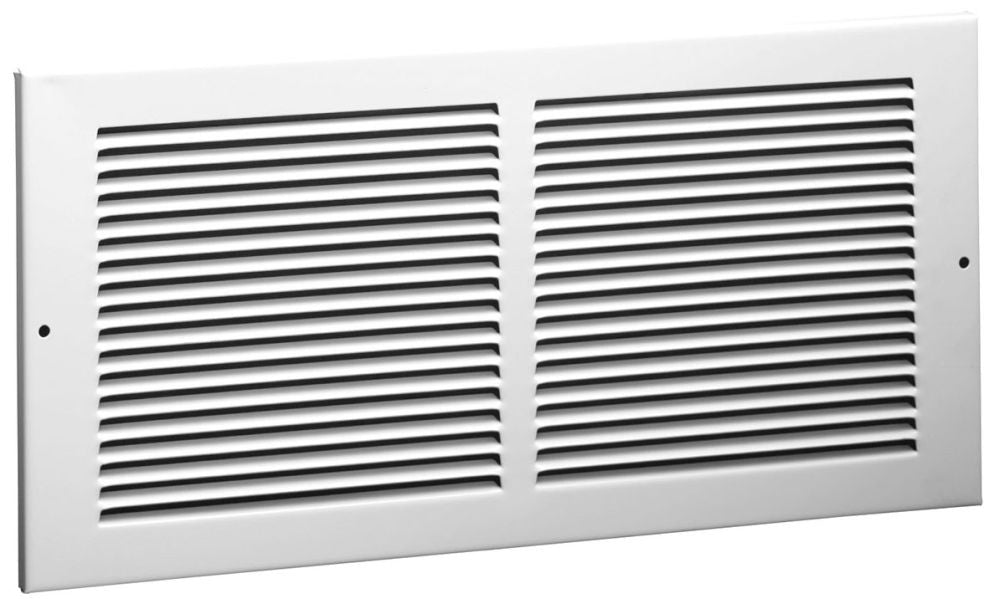

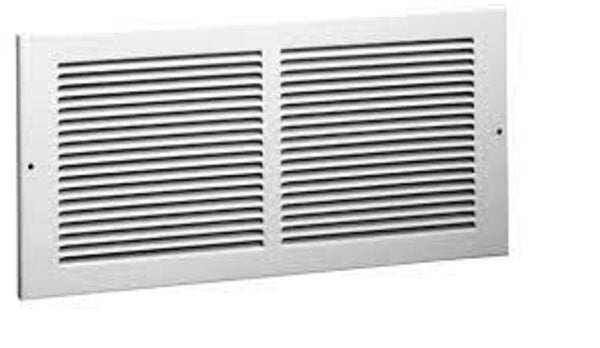

The HART & COOLEY 043168 Hc 650 24 X 10 Wall Grille is a return air grille with a stamped face. This steel grille measures 24 inches in width and 10 inches in height, with overall dimensions of 25-3/4 inches width x 5/16 inches depth x 11-3/4 inches height. It is designed for residential applications.

• All Steel Construction
• 1/3 Inch Spaced Fins Set at 20 Degrees
• Exceptional Free Area

Product Highlights

All steel construction with 1/3 inch spaced fins set at 20 degrees. Features a 5/16 Inch Margin Turnback and is designed for residential use.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 043168
• Country of Origin: MEXICO

Technical Specifications

• Type: Return Air
• Style: Stamped Face
• Grill Size: 24 Inch Width x 10 Inch Height
• Overall Dimensions: 25-3/4 Inch Width x 5/16 Inch Depth x 11-3/4 Inch Height
• Fin Spacing: 1/3 Inch
• Fin Angle: 20 Degree
• Material: Steel
• Finish Color: Bright White
• Inclusions Features: 5/16 Inch Margin Turnback
• Additional Information: Airflow Rating 343 to 685 CFM; Face Velocity 300 to 600 FPM; Pressure Loss 0.01 to 0.041; Application Residential
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 043168
• Series/Model: 650
• Brand: HART & COOLEY
• MPN: 043168
• Size (W x H): 24" x 10"
