Hart & Cooley 016609 10 inches Draft Hood Connector (10 Inch/1 per Case) 10RDH

Product Description

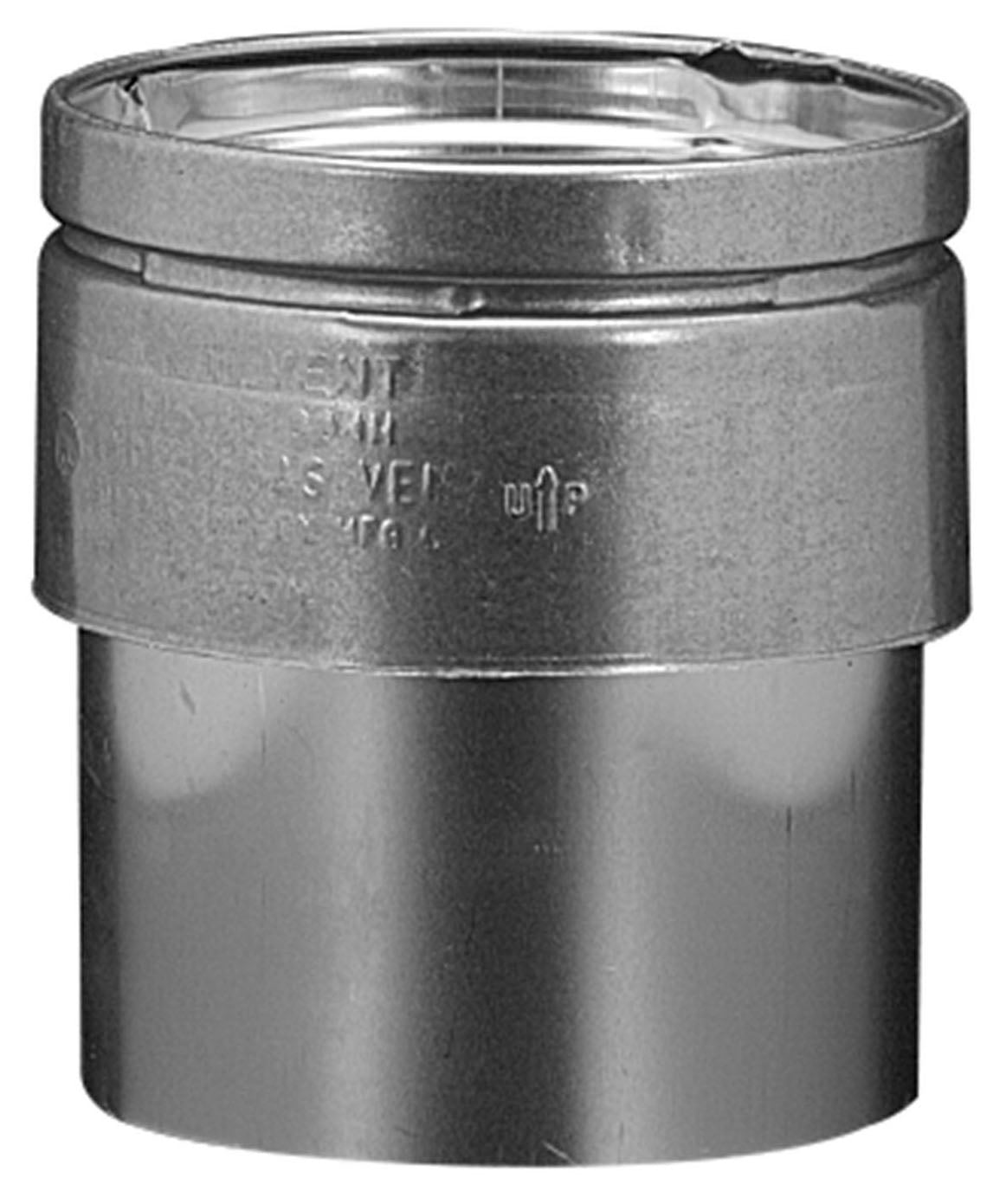

Hart & Cooley 016609 is a 10-inch draft hood connector for Type B gas vent systems that connects a draft hood to B-vent pipe. The connector is double-wall and round with a 10 in inside diameter and approximately 11 in outside diameter, and an 8-1/2 inch length. Construction uses an aluminum inner wall and G90 galvanized steel outer wall with provided installation instructions and compliance to UL 441 and NFPA 54/211.

• 10-inch nominal connector: 10 in ID, ~11 in OD, 8-1/2 in length for B-vent draft hood connections
• Double-wall construction with 0.016 in aluminum inner wall and 0.018 in G90 galvanized steel outer wall
• Meets UL 441 and NFPA 54/211 standards; supplied with manufacturer installation instructions; series RDH (model 10RDH)

Product Highlights

Double-wall 10-inch draft hood connector for Type B gas venting; aluminum inner wall, G90 galvanized outer wall; 8-1/2 inch length; UL 441 and NFPA 54/211 compliant.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 016609
• Country of Origin: United States

Technical Specifications

• Brand: Hart & Cooley
• MPN: 016609
• Model: 10RDH
• Series: RDH
• Product Type: Draft hood connector (Connector)
• Application: Type B gas vent system / B-vent
• Size: 10 inch nominal
• Inner Diameter: 10 in (ID)
• Outer Diameter: ~11 in (OD)
• Length: 8-1/2 in
• Material: Aluminum inner wall; G90 galvanized steel outer wall
• Inner Wall Thickness: 0.016 in
• Outer Wall Thickness: 0.018 in
• Construction Type: Double-wall, round
• Standards / Certifications: UL 441; NFPA 54/211
• Weight: 2 lb
• Package Quantity: 1 per case
• UPC: 684048166098
• Country of Origin: MX
