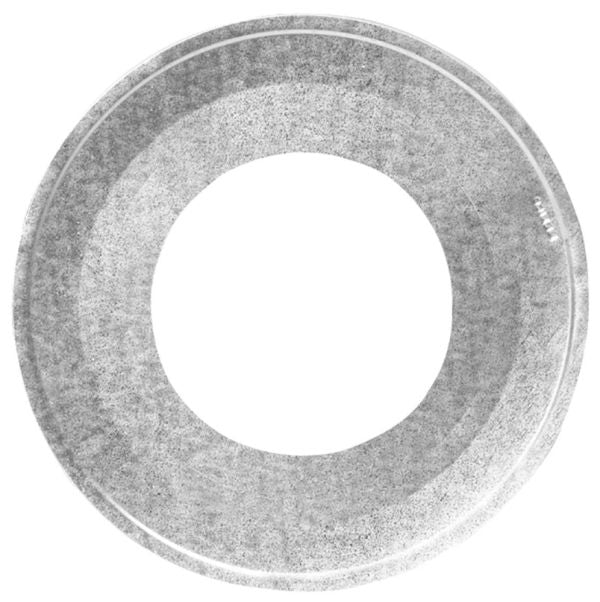

HART & COOLEY 016221 5-Inch Gas Vent Pipe Collar

Product Description

The HART & COOLEY 016221 is a five-inch diameter pipe collar specifically designed for Type B gas vent systems. This collar is constructed from galvanized steel and is used to cover rough openings during the installation of gas vent pipes. It ensures a strong connection for the double-wall, air-insulated B-Vent system. The collar is suitable for negative pressure applications and can handle flue gas temperatures up to four hundred degrees Fahrenheit above ambient for Category I appliances.

• Designed for Type B gas vent systems
• Constructed of galvanized steel
• Covers rough openings during installation

Product Highlights

This gas vent pipe collar is vital for securing venting installations in compliance with safety standards.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 016221

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Diameter: 5 inches
• Applicable Standard: UL 441
• Standards/Approvals: UL 441 Listed
• Application: For Type B gas vent system
• Type: Round
• Temperature Rating: Greater than 550 degrees Fahrenheit
• Material Standard: G90
• Material Thickness: 0.018 inches
• Gauge: 0.018 inches
• Dimensions: 5-5/8 inches ID x 10-7/8 inches OD
