Hart & Cooley 012952 HC 24 10 inches Ceiling Diffuser

Product Description

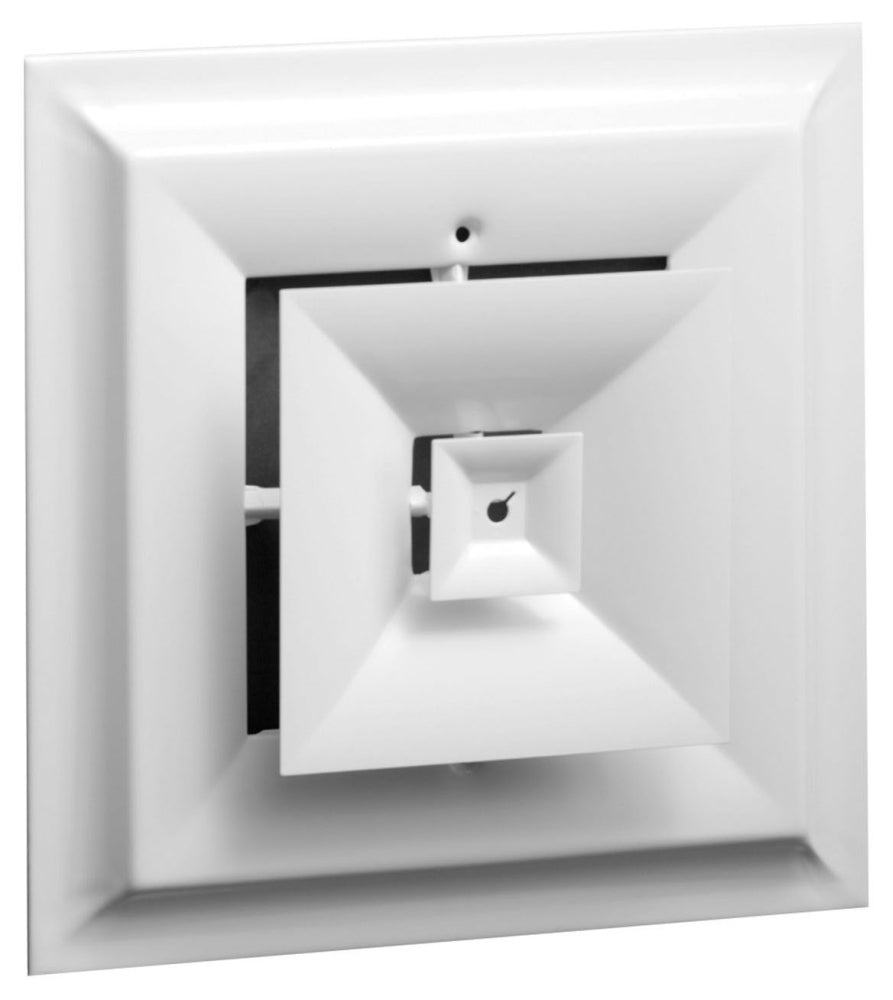

The HART & COOLEY 012952 HC 24 is a square ceiling diffuser with a 3-cone deflection design. Constructed from steel with a bright white enameled finish, it measures 15-1/2 inches in length and width, and 2-31/64 inches in depth. This diffuser features an opposed blade damper and provides a 360-degree air diffusion angle, with an airflow rating of 125 to 420 CFM. Suitable for residential applications.

• All steel construction for durability
• Step-down diffuser rings deflect air stream 360 degrees
• Features opposed blade damper

Product Highlights

The HART & COOLEY 012952 HC 24 ceiling diffuser is ideal for residential use, providing 360-degree air diffusion.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 012952

Technical Specifications

• Catalog Number: 012952
• Customer UPC: 68404812952
• Category: HVAC/R & Fans
• Deflection: 3-Cone
• Description: Ceiling Diffuser; Type Square; Deflection 3-Cone; Overall Dimensions 15-1/2 Inch Length x 15-1/2 Inch Width x 2-31/64 Inch Depth; Free Area Size 84 Square Inch; Material Steel; Finish/Color Bright White Enameled; Inclusions/Features Opposed Blade Damper; Nominal Size 10 Inch x 10 Inch; Air Diffusion Angle 360 Degree; Air Flow Rating 125 to 420 CFM; Face Velocity 300 to 1000 FPM; Pressure Loss 0.006 to 0.062; Application Residential
• Features/Benefits: All Steel Construction; Step-Down Diffuser Rings Deflect Air Stream 360 Degree
• Finish Color: Bright White Enameled
• Free Area Size: 84 Square Inch
• Inclusions Features: Opposed Blade Damper
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 24-10-W
• Material: Steel
• Overall Dimensions: 15-1/2 Inch Length x 15-1/2 Inch Width x 2-31/64 Inch Depth
• Series/Model: 24
• Type: Square
• UNSPSC Code: 40101505
• UPC: 684048129529
• Nominal Size: 10 Inch x 10 Inch
• Air Diffusion Angle: 360 Degree
• Air Flow Rating: 125 to 420 CFM
• Face Velocity: 300 to 1000 FPM
• Pressure Loss: 0.006 to 0.062
• Application: Residential
