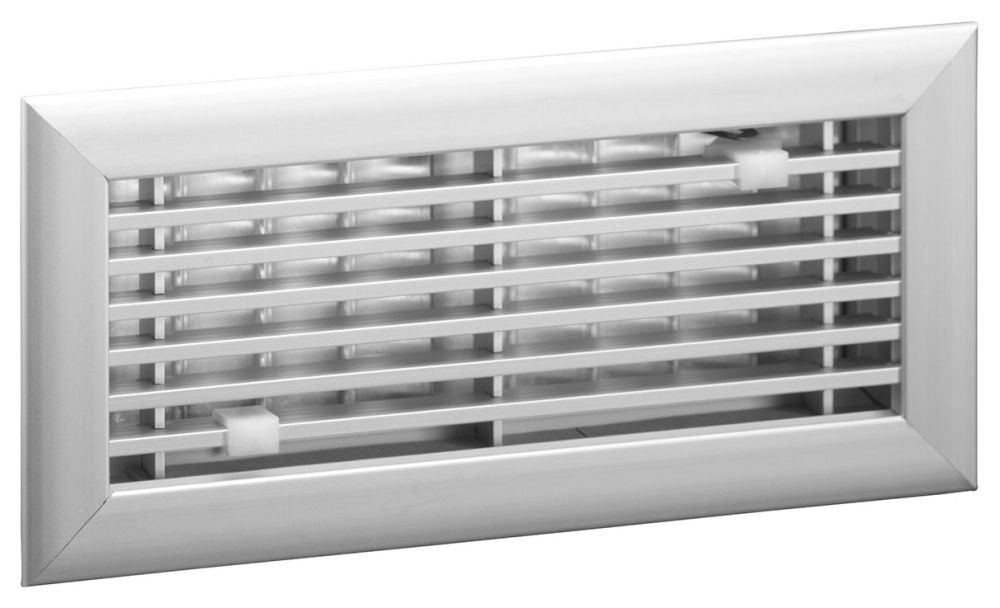

Hart & Cooley 010743 Hc 531 Floor Diffuser 6 x 14

Product Description

The HART & COOLEY 010743 Hc 531 Floor Diffuser is designed for residential applications. Constructed from extruded aluminum, this floor diffuser features dual multi-shutter valves for adjustable air patterns and nylon slide valve operators. It has a free area size of 44 square inches and is suitable for airflow ratings of 80 to 300 CFM and face velocities of 300 to 1000 FPM.

• Extruded Aluminum Construction
• Corrosion Resistant, High Strength
• Dual Multi-Shutter Valves for Adjustable Air Pattern

Product Highlights

Durable extruded aluminum construction with adjustable air pattern, ideal for residential use.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 010743

Technical Specifications

• Actuation Type: Dual Multi-Shutter Valve
• Catalog Number: 010743
• Category: HVAC/R & Fans
• Deflection: Multi
• Description: Floor Diffuser; Type Floor; Deflection Multi; Overall Dimensions 15-3/8 Inch Length x 7-3/8 Inch Width x 2-4/7 Inch Depth; Free Area Size 44 Square Inch; Actuation Type Dual Multi-Shutter Valve; Fin Spacing 1/2 Inch; Material Extruded Aluminum; Finish/Color Satin Anodized; Inclusions/Features Nylon Slide Valve Operator; Nominal Size 6 Inch Width x 14 Inch Length; Airflow Rating 80 to 300 CFM; Face Velocity 300 to 1000 FPM; Pressure Loss 0.006 to 0.062; Application Residential
• Fin Spacing: 1/2 Inch
• Finish Color: Satin Anodized
• Free Area Size: 44 Square Inch
• Inclusions Features: Nylon Slide Valve Operator
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 010743
• Manufacturer Part Number Additional: 531-06-14-SA
• Material: Extruded Aluminum
• Overall Dimensions: 15-3/8 Inch Length x 7-3/8 Inch Width x 2-4/7 Inch Depth
• Series/Model: 531
• Type: Floor
• UNSPSC Code: 40101505
• UPC: 699663036640
• Additional Information: Nominal Size 6 Inch Width x 14 Inch Length; Airflow Rating 80 to 300 CFM; Face Velocity 300 to 1000 FPM; Pressure Loss 0.006 to 0.062; Application Residential
• Nominal Size: 6 Inch Width x 14 Inch Length
• Airflow Rating: 80 to 300 CFM
• Face Velocity: 300 to 1000 FPM
• Pressure Loss: 0.006 to 0.062
• Application: Residential
