Harris HA-11 Inferno Quick Connect Swirl Heating Tip

Product Description

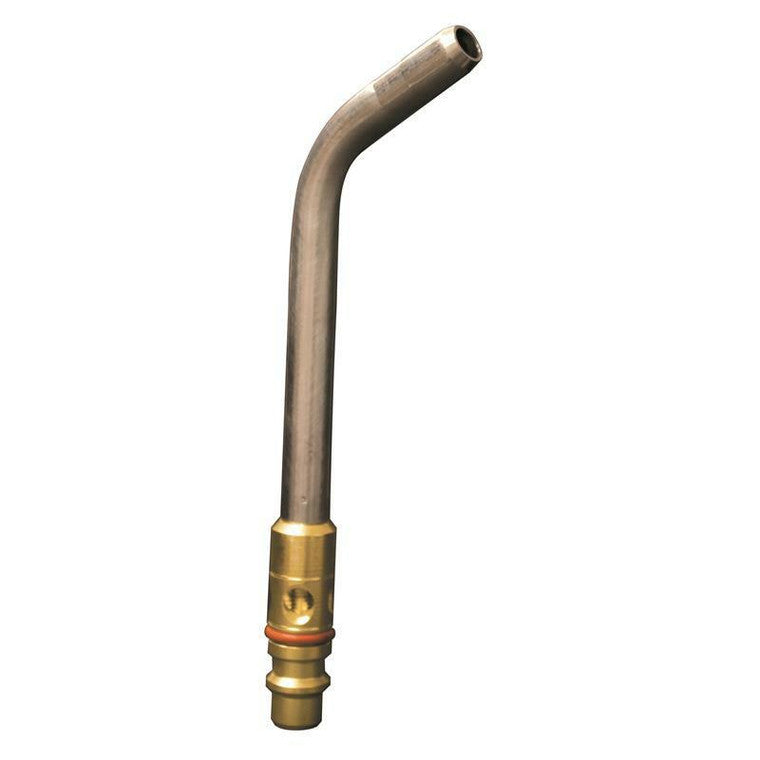

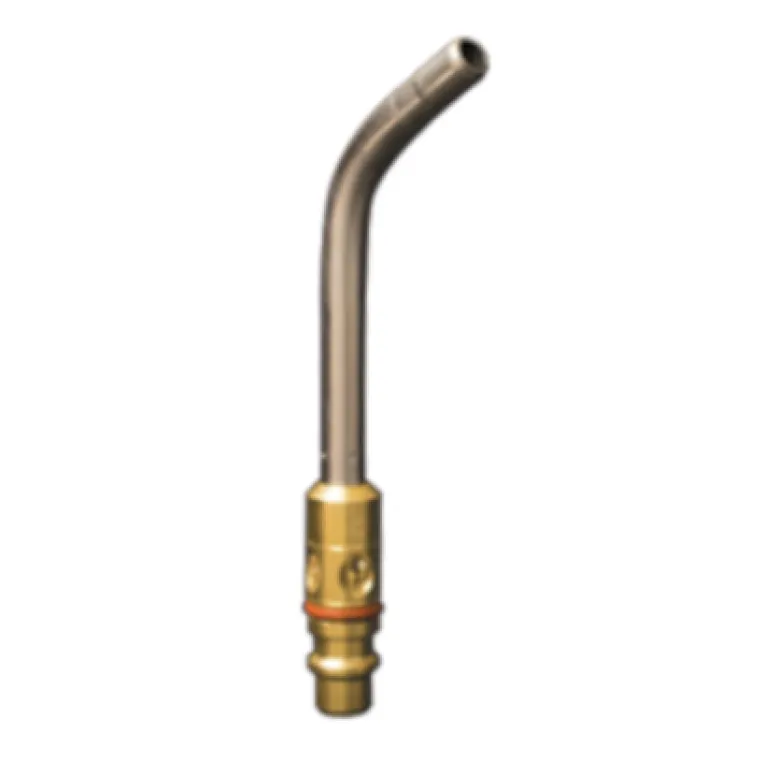

The Harris HA-11 Inferno® air-fuel quick connect swirl tip features a specially-designed insert for reliable swirl combustion. It delivers a consistently hotter flame that engulfs the work-piece for maximum efficiency. Constructed from 304 stainless steel, it integrates with existing quick-connect air-fuel handles using acetylene.

• Quick connect with "A" hose connections
• Constructed from thick and strong 304 stainless steel tube stock and brass for longer service life
• Unique swirl combustion design provides a consistent, hotter flame that engulfs and wraps around the work-piece for maximum efficiency.

Product Highlights

Durable swirl heating tip made from stainless steel and brass. Provides a hotter flame for maximum efficiency. Compatible with air/acetylene.

Product Information

Standard Information

• Brand: HARRIS
• Manufacturer Part Number: HA-11

Technical Specifications

• Compatible Handle Model Number: HQA-4, HQB-4
• Construction: 304 Stainless steel and brass
• Duty: Light
• Gas / Gas Service: Air/Acetylene
• Copper Tube Capacity - Acetylene - Brazing: 7/8" - 2" (22.23mm - 50.80mm)
• Copper Tube Capacity - Acetylene - Soft Solder: 1 1/4" - 4" (31.75mm - 101.60mm)
• Material: 304 Stainless Steel and Brass
• Connection Type: Quick Connect with "A" Hose Fittings
