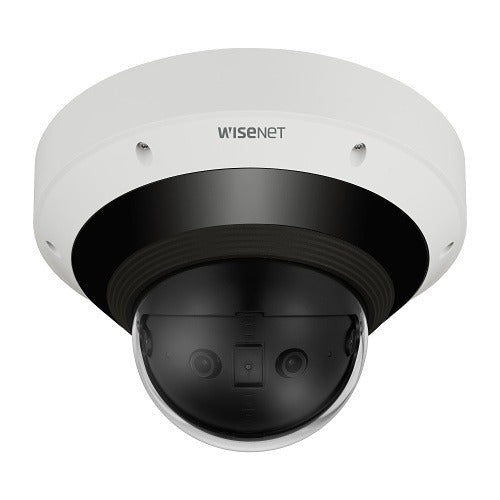

Hanwha Vision Us PNM-9031RV/KUS 15MP Panoramic Ip Dome Camera

Product Description

The HANWHA VISION US PNM-9031RV/KUS is a 15-megapixel panoramic IP dome camera built for professional security installations. It delivers a 192-degree panoramic field of view, combining high-resolution imaging with infrared night vision capability. Wide Dynamic Range (WDR) processing handles scenes with mixed lighting conditions, preserving detail in both bright and shadowed areas. The unit carries an IK10 impact resistance rating and an IP66 weatherproof rating, making it suitable for demanding indoor and outdoor environments. Security integrators and licensed low-voltage technicians are the primary installers of this unit.

This camera is designed for use in commercial and institutional surveillance applications where wide-area coverage is required from a single mounting point. Its panoramic design reduces the number of cameras needed to monitor large open spaces such as parking structures, lobbies, warehouses, and perimeter zones. The IK10 and IP66 ratings make it appropriate for locations exposed to physical impact risk or outdoor weather exposure.

Key Features

• 15-megapixel resolution for high-detail panoramic imaging
• 192-degree panoramic field of view for wide-area coverage
• Built-in infrared illumination for low-light and no-light operation
• Wide Dynamic Range (WDR) for balanced imaging in high-contrast lighting
• IK10 vandal-resistant rating for impact-prone installations
• IP66 weatherproof rating for outdoor and harsh-environment use

Compatibility

Designed as an OEM-specification IP dome camera compatible with network video recorder (NVR) systems and video management software (VMS) platforms that support standard IP camera protocols.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with local electrical codes and the National Electrical Code (NEC). Power down and disconnect the network feed before mounting or wiring the unit. Verify that the mounting surface can support the camera housing weight and that conduit or cable routing maintains the IP66 seal integrity at all entry points. Configure the camera through the network interface before finalizing the installation to confirm image coverage and IR performance.
