Handymark HM1001-BF Drywall Outlet Box Marking Tool

Product Description

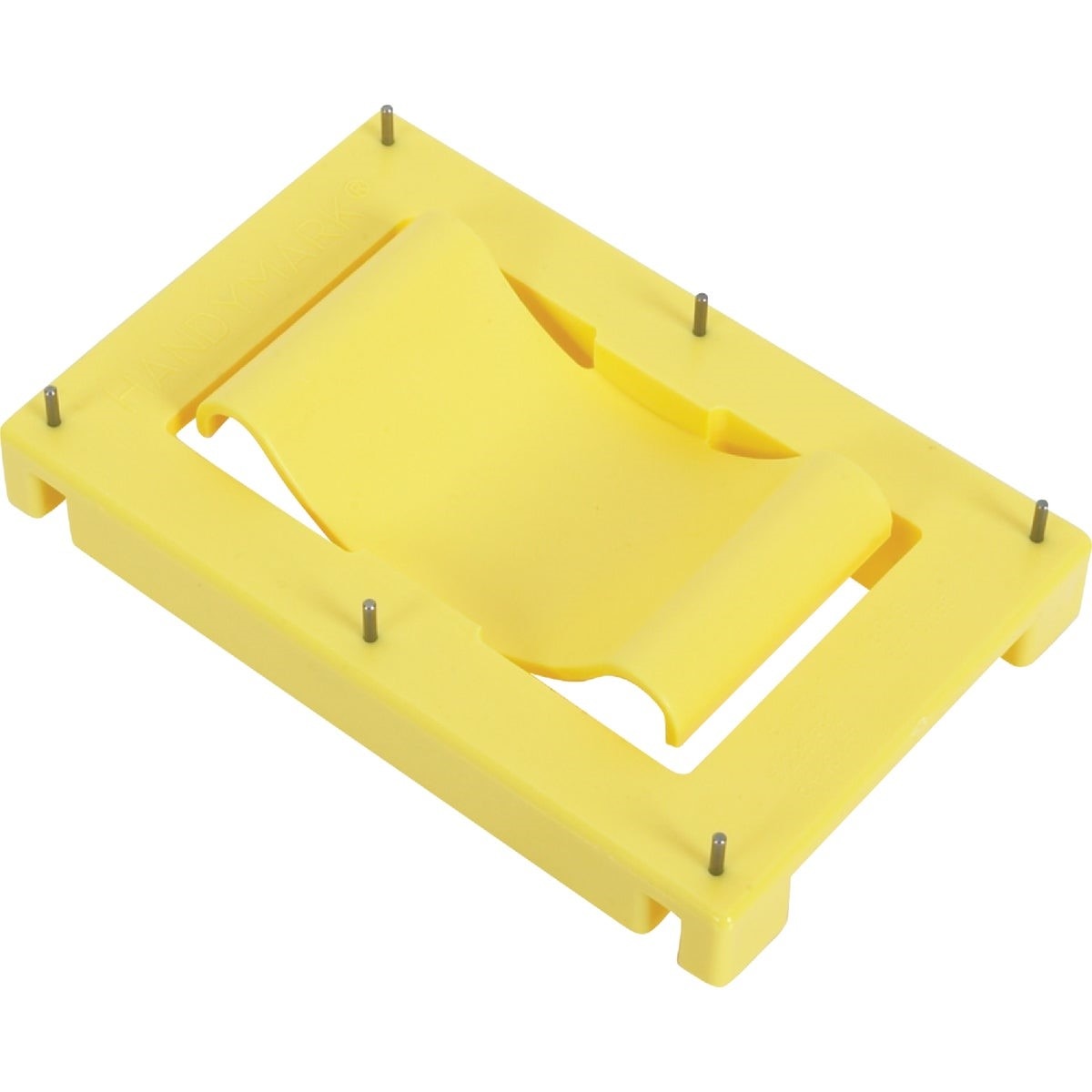

The HANDYMARK HM1001-BF is a drywall marking tool designed to transfer the precise cutout location of outlet boxes directly onto drywall panels without measuring. The base component positions over a standard multigang plastic outlet box and uses stainless steel pins to mark the drywall face, giving electricians and drywall installers a fast, accurate reference point for cutting. At 5 inches by 3.5 inches, the tool covers standard box footprints and is constructed from tough ABS plastic for jobsite durability. The tool is reusable, making it practical across multiple rough-in installations on the same job.

This tool is suited for residential and light commercial electrical rough-in work where drywall is being installed over already-mounted outlet boxes. It eliminates the manual measurement step when locating box cutouts, reducing the chance of miscuts and rework. The HM1001-BF works with standard multigang plastic outlet boxes whether receptacles are oriented facing out or facing in, covering common installation configurations encountered in new construction and remodel work alike.

Key Features

• Transfers outlet box cutout location to drywall without measuring
• Stainless steel pins mark the drywall face for accurate cutout placement
• Compatible with standard multigang plastic outlet boxes in receptacle-out or receptacle-in orientation
• ABS plastic construction withstands repeated jobsite use
• Reusable design suitable for multi-box installations
• Compact footprint at 5 inches by 3.5 inches fits standard box layouts

Compatibility

Designed for use with standard multigang plastic outlet boxes with receptacles positioned either out or in, as stated by the manufacturer. Verify box dimensions against the tool footprint before use on non-standard or metal boxes.

Installation Notes

This tool is typically used by electricians or drywall installers during the board-hang phase of construction or remodel work. Before use, confirm the outlet box is securely fastened to the framing and the panel is positioned correctly against the wall. No special tools or fasteners are required to operate the marking tool. Follow all applicable local electrical codes and OSHA safety guidelines when working around energized or partially wired panels.

Technical Specifications

• Dimensions: 5 inches x 3.5 inches
• Weight: 0.167 pounds
• Material: ABS Plastic, Stainless Steel Pins
• Sold As: Each
• UPC: 00852131000080

Standard Information

• Brand: HANDYMARK
• Manufacturer Part Number: HM1001-BF
