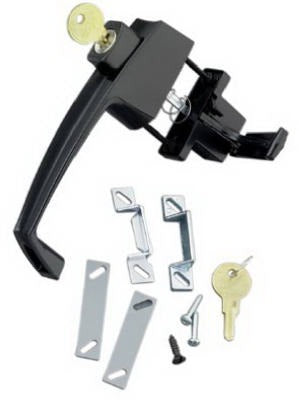

Hampton Products-wright VK333X3BL Push Button Key Lock

Product Description

The HAMPTON PRODUCTS-WRIGHT VK333X3BL is a black push button key lock designed for out-swinging wood or metal doors. It combines a push button locking mechanism with a keyed cylinder to provide two levels of access control in a single unit. The lock fits doors ranging from 3/4 inch to 1-1/4 inches in thickness and installs through three 5/16-inch holes with a 1-3/4-inch hole spacing. A built-in no-lockout feature prevents accidental lockouts during installation or daily use. Packaged in quantities of six, this lock is suited for light commercial or residential door applications where reliable keyed entry is required.

The VK333X3BL is intended for out-swinging wood or metal door applications such as storage rooms, utility closets, outbuildings, and similar entry points. It is compatible with standard door thicknesses from 3/4 inch to 1-1/4 inches. The package includes two sizes of strikes and shims to allow adjustment during installation, making it adaptable to varying door frame conditions. This lock is typically installed by carpenters, general contractors, or maintenance technicians as part of a door hardware assembly.

Key Features

• Push button mechanism with keyed cylinder for dual-mode access control
• Fits door thicknesses from 3/4 inch to 1-1/4 inches
• Installs in three 5/16-inch holes with 1-3/4-inch hole spacing
• Includes two sizes of strikes and shims for latching adjustment
• No-lockout feature prevents accidental lockout
• Finished in black; compatible with wood or metal out-swinging doors

Compatibility

Designed for out-swinging wood or metal doors with a thickness between 3/4 inch and 1-1/4 inches. Suitable for residential and light commercial door hardware applications where push button key locks are specified.

Installation Notes

Installation requires drilling three 5/16-inch holes at the specified 1-3/4-inch spacing; verify door thickness before drilling. Power down any electric door hardware on the same assembly before beginning work. Use the included strikes and shims to adjust latch engagement to the door frame. Follow applicable local building codes for door hardware installation in commercial or multi-unit residential settings.
