Hammond Valve 629000112 Bronze Gate Valve 1.5 in Threaded

Product Description

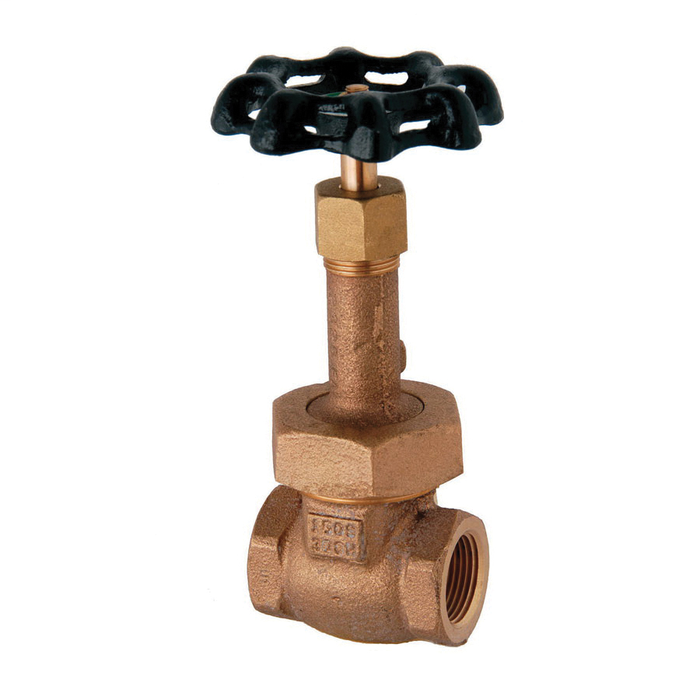

The HAMMOND VALVE 629000112 is a bronze gate valve designed for threaded pipeline installations requiring reliable full-bore shutoff. Built with a rising stem configuration, this valve gives installers a clear visual indicator of open or closed position at a glance. Rated at 150 SWP and 300 WOG, the 629000112 is suited for steam, water, oil, and gas service within those pressure limits. The 1.5-inch nominal size and NPT-threaded end connections make this a direct fit for standard threaded piping systems encountered in commercial and industrial plumbing, HVAC hydronic loops, and mechanical rooms. Licensed plumbers and pipefitters are the primary trade installing this valve.

This gate valve is appropriate for residential and light commercial plumbing systems, hydronic heating distribution, and general industrial fluid control applications. The bronze body construction resists corrosion in wet service environments, making it well suited for potable water and steam systems where ferrous valves are not preferred. The threaded end connections align with standard NPT pipe fittings common in mechanical piping assemblies. It is sized at 1.5 inches nominal, covering a common distribution line size found in boiler rooms, equipment rooms, and process piping.

Key Features

• Rising stem design provides visible open or closed position indication
• Bronze body construction for corrosion resistance in wet and steam service
• 150 SWP and 300 WOG pressure ratings support a broad range of service conditions
• NPT threaded end connections for compatibility with standard pipe fittings
• 1.5-inch nominal size fits common distribution and branch line applications
• Full-bore gate design minimizes flow restriction when fully open

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for 1.5-inch threaded bronze valve applications in plumbing, hydronic heating, and mechanical piping systems rated within 150 SWP or 300 WOG service parameters.

Installation Notes

Gate valves of this type are installed by licensed plumbers or pipefitters in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and depressurize the system and allow steam or hot water lines to cool fully before removing or installing any valve. Use proper pipe thread sealant or PTFE tape on NPT threads and tighten to appropriate engagement without over-torquing the bronze body. Gate valves are intended for full-open or full-closed service only and should not be used for throttling flow regulation.

Technical Specifications

• Valve Type: Gate Valve
• Stem Type: Rising Stem
• End Connection: Threaded (NPT)
• Body Material: Bronze
• Nominal Size: 1.5 inches
• Pressure Rating (SWP): 150 psi
• Pressure Rating (WOG): 300 psi

Standard Information

• Brand: HAMMOND VALVE
• Manufacturer Part Number: 629000112
