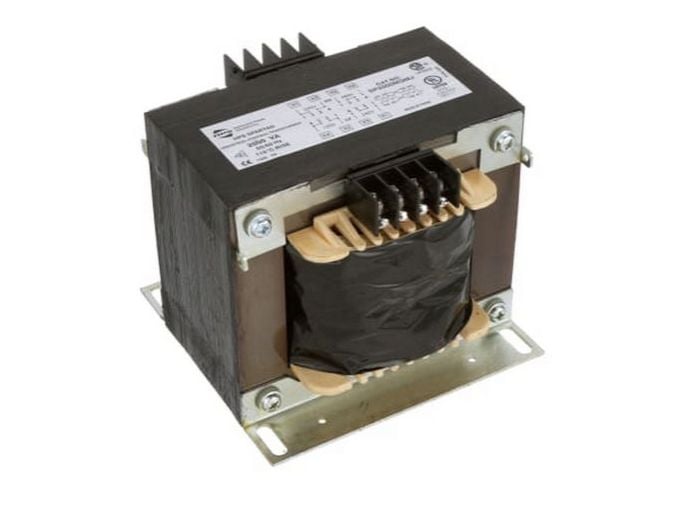

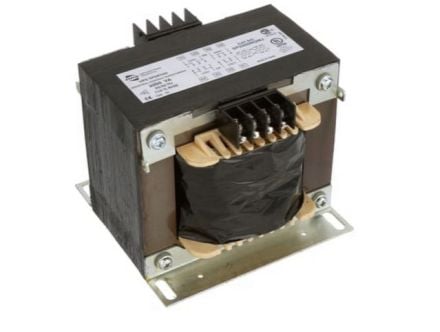

Hammond SP2000MQMJ Control Transformer 2 KVA 1 Phase

Product Description

The HAMMOND SP2000MQMJ is an open core industrial control transformer ideally suited for general-purpose, industrial, and light-duty loads. Designed for applications where high inrush or machine tool duty are not necessary, this HPS Spartan industrial open-style control transformer offers an efficient and economical solution. Well suited for HVAC, signal and alarm systems, motor control circuits, lighting and circuit isolation.

• Ideally suited for general-purpose, industrial and light duty loads.
• Efficient and economical solution.
• Well suited for HVAC applications, signal and alarm systems, motor control circuits, lighting and circuit isolation.

Product Highlights

The Hammond SP2000MQMJ is a 2 KVA, 1 phase control transformer with an open-style core, suitable for various industrial applications.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: SP2000MQMJ

Technical Specifications

• Brand: HAMMOND
• MPN: SP2000MQMJ
• Manufacturer: HAMMOND
• Phase: 1 Phase
• Power Rating: 2 kVA
• Primary Voltage: 240 (230, 220)/480 (460, 440) VAC
• Secondary Voltage: 120 (115, 110)/240 (230, 220) VAC
• Frequency: 50/60 Hz
• Mounting Type: Panel Mount
• Termination: screw
• Type: Control Transformer
• Applications: HVAC, Signals and Alarm Systems, Motor Control Circuits, Lighting and Circuit Isolation
• Enclosure Type: Open
• Wattage: 2000 Watt
• Product Series: HPS Spartan
• VA Rating: 2,000 VA
• Enclosed: No
• Mounting: Panel
• Termination Style: Screw
• Number of Phases: 1
• Primary Voltage Rating (AC): 240/480 V
• Secondary Voltage Rating (AC): 240 V
• Maximum Operating Frequency: 60 Hz
• Minimum Operating Frequency: 50 Hz
• Secondary Current: 16.7/8.33 A
• Configuration: Open-Frame
• Standards: CSA, UL, CE
• Temperature Rating: 40 degrees C
• Electrical Phase: 1 Ph
• Maximum Amperage: 16.7 Amp
