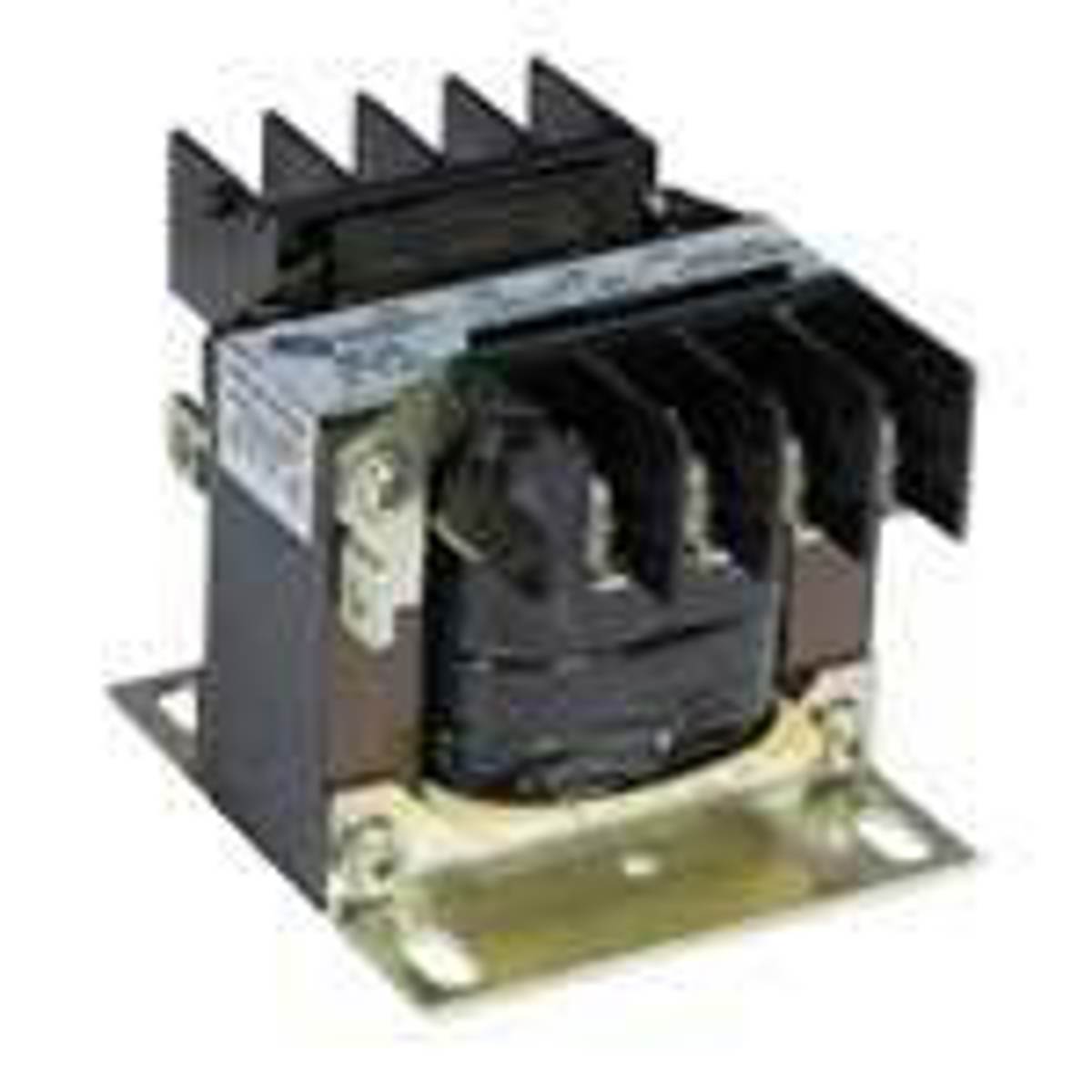

Hammond SP1000MQMJ 1000 VA 240 x 480 Volt Primary 120 x 240 Volt Secondary Control Transformer

Product Description

The Hammond SP1000MQMJ is a control transformer designed for general-purpose applications. It operates at a primary voltage of 240 to 480 volts and provides a secondary voltage of 120 to 240 volts. This transformer is suitable for various applications including HVAC systems, signals and alarm systems, motor control, and lighting circuits.

• Open-style core and coil design
• Power rating of 1000 VA
• Panel mounted for easy installation

Product Highlights

This transformer is built for standard commercial loads and is designed to handle typical current inrush situations. Additional finger safe covers can be acquired for enhanced safety.

Product Information

Standard Information

• Brand: Hammond Power Solutions
• Manufacturer: Hammond Transformers

Technical Specifications

• Catalog Number: SP1000MQMJ
• Wattage: 1000 VA
• Enclosure: Core and Coil
• Frequency: 50/60 Hz
• Primary Voltage: 240 - 480 V
• Secondary Voltage: 120 - 240 V
• Mounting Type: Panel
• Temperature Rating: 40 degrees C
• Application: HVAC, signals and alarm systems, motor control circuits, lighting and circuit isolation
