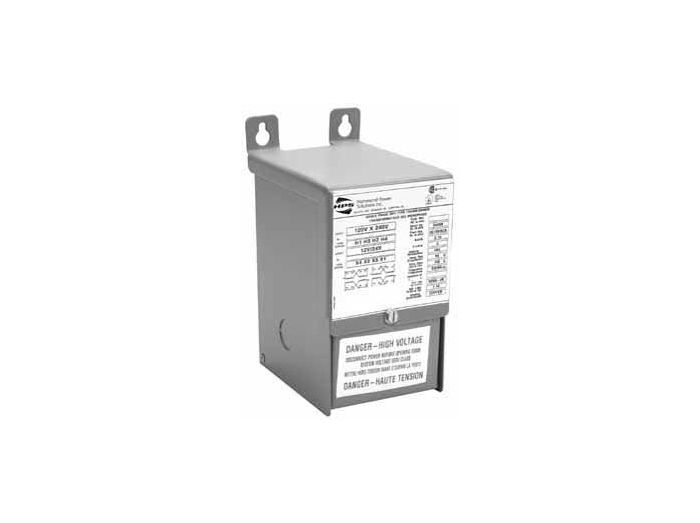

Hammond QC15ERCB 150 VA Buck-Boost Transformer

Product Description

The Hammond QC15ERCB is a buck-boost transformer that adjusts line voltages that may be slightly above or below normal levels. It operates as an autotransformer, effectively transforming a portion of the load kVA, allowing for a larger kVA load than the nameplate specifies. This transformer is equipped with an encapsulated core and coils and a NEMA Type 3R enclosure, making it ideal for environments requiring stable voltage adjustments.

• Designed with a NEMA Type 3R enclosure.
• Encapsulated core and coils for durability.
• Efficiently adjusts stable voltages.

Product Highlights

This model efficiently enhances voltage stability in both residential and commercial settings.

Product Information

Standard Information

• Manufacturer Part Number: QC15ERCB
• Manufacturer: Hammond Power Solutions

Technical Specifications

• Product Series: Buck-Boost
• Phase: 1, 3
• Type: Distribution
• VA Rating: 150 VA
• Primary Voltage: 120 V, 240 V
• Secondary Voltage: 12 V, 24 V
• Mounting: Wall
• NEMA Rating: NEMA 3R
• Termination: Wire Leads
• Insulation Class: Class B
• Temperature Rise: 176 °F
• Approvals: CSA, UL
• Material: Steel
• Dimensions: 95.25 mm W x 184.15 mm H
• Temperature Rating: 40 C
