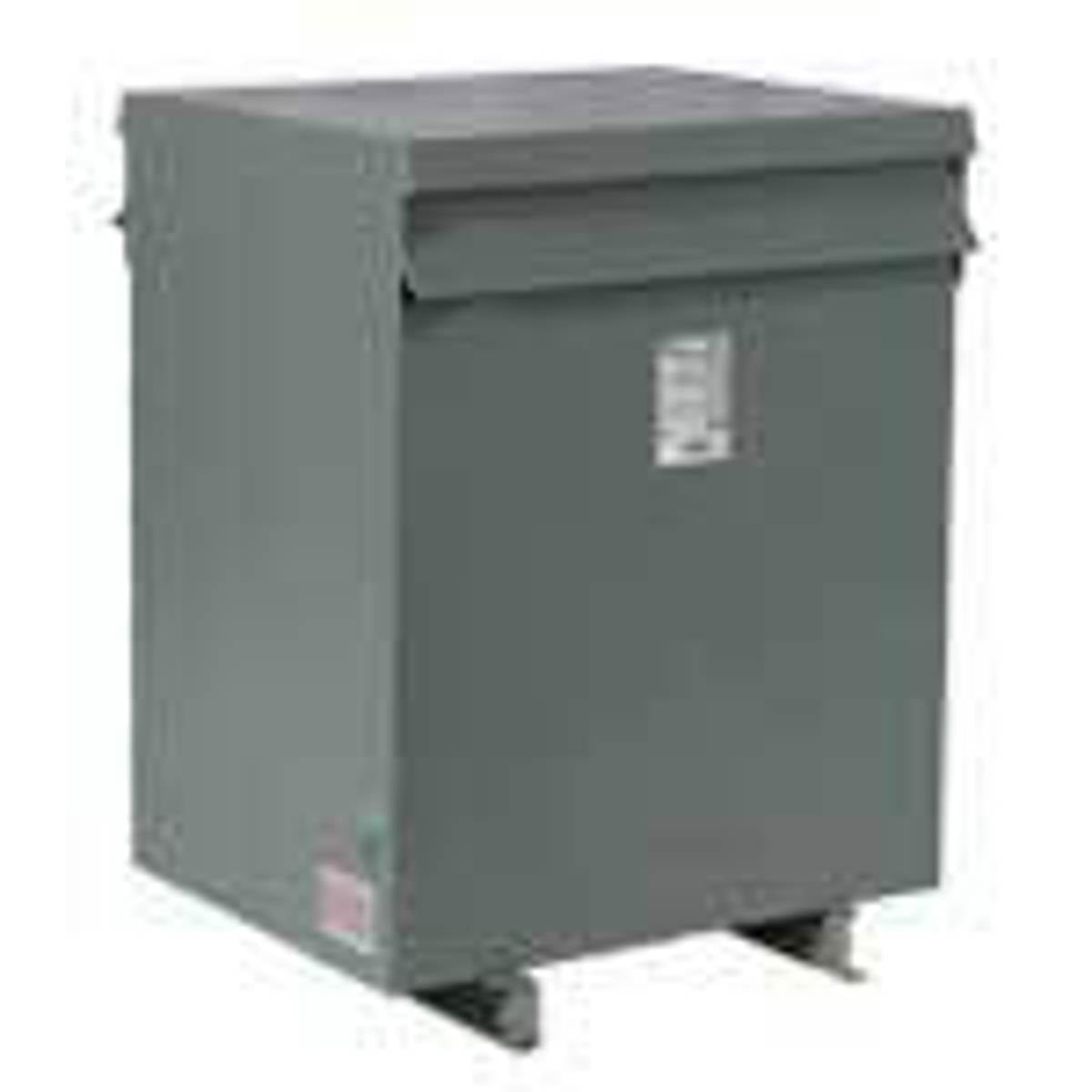

Hammond Power Solutions DM118KD 600V Class Three Phase Drive Isolation Transformer, 480D PV, 240Y SV, 118 kVA

Product Description

The Hammond Power Solutions DM118KD is a 600V class three-phase drive isolation transformer, suitable for various applications involving variable speed drives. This transformer has a primary voltage of four hundred eighty volts and a secondary voltage of two hundred forty Y volts. It is designed to handle significant overcurrent, providing durability and reliability for demanding environments.

• Designed for variable speed drives
• Suitable for both indoor and outdoor installations
• Complies with CSA and UL standards

Product Highlights

This transformer features an NH3-N3R enclosure, is floor-mounted, and supports a frequency rating of sixty Hertz.

Product Information

Standard Information

• Manufacturer: Hammond Power Solutions
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: DM118KD
• Phase: 3
• Primary Voltage: 480 V
• Secondary Voltage: 240Y V
• Number of Taps: ST-20 compliant
• Width: 26 inches
• Length: 21 inches
• Height: 38 inches
• Temperature Rating: Typical 30 Average/ 40 Maximum DEG C
• Special Features: Designed to withstand overcurrent of 150% for 60 seconds or 200% for 30 seconds. Includes an indoor/outdoor enclosure with a thermal warning switch.
