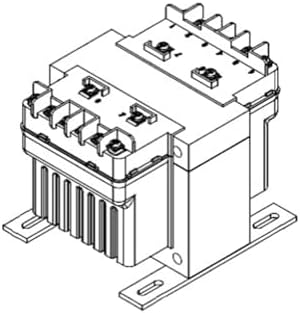

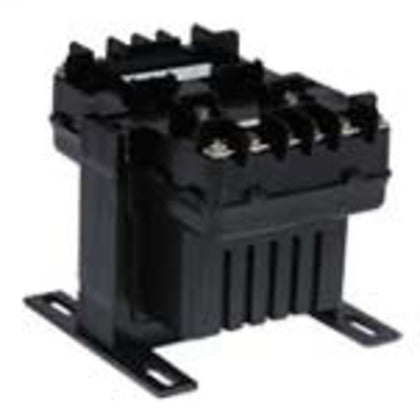

Hammond Power PH500MGJ Control Transformer 500 VA replacement C2M0500MGJ

Brand: Hammond Power
SKU: PH500MGJ
Availability: Out Of Stock
$272.57
$272.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Hammond Power PH500MGJ is a machine tool rated industrial control transformer from the HPS Imperator series, designed for high inrush industrial applications using electromagnetic components. It features encapsulated coils encased in a custom injection molded cover, protecting them from moisture and contaminants. The unique terminal block design allows for quick and easy installation.

  • 600V class, rated industrial control transformers
  • Constructed with high quality silicon steel laminations
  • Encapsulated coils protect from moisture and dirt

Product Highlights

The Hammond Power PH500MGJ is ideal for industrial control applications requiring robust and reliable power.

Product Information

Standard Information

  • Brand: Hammond Power
  • Manufacturer Part Number: PH500MGJ
Technical Specifications
Alternate Part Number
Optional Primary Fuse Kit: PFK7 (Sold Separately), Discontinued, Available While Stock Lasts!, Replaced by C2M0500MGJ
Phase
Single Phase
Primary Voltage
380/277/208V
Series
HPS Imperator
Type of Transformer
Control Power
VA
500VA
Weight
20.375
Warranty
Lifetime
Quantity
1
Manufacturer Part Number
PH500MGJ
Manufacturer
Hammond Power Solutions
Number of Outlets
2
UNSPSC Code
39120000
Unit of Measure
EA
Operating Temperature
80 °C
Needed Voltage
120 VAC, 240 VAC
Mounting Type
Panel Mount
Mounting Hole Size
4.06 in, 4.5 in, in
Secondary Voltage
120/240 VAC
UPC Code
803423078577
Primary Type
Industrial Transformer
Power Rating
500 VA
Secondary Current
4.17/2.08 A
Available Voltage
208 VAC, 277 VAC, 380 VAC
Frequency
50/60 Hz
Type
Control Transformer
Configuration
Encapsulated
Termination
screw
Standards
cULus, CE
Product Series
HPS Imperator
Family Series
Hammond Power Solutions Transformers, HPS Imperator Series
Description
HPS Imperator, 500VA, 1PH, Open, Pri 380/277/208, Sec 120x240, 4.75in.Hx4.31in.Wx6.69in.D
VA Rating
500 VA
Enclosed
No
Primary Fuseholder
Not Available
Secondary Fuseholder
Included
Cover Included
No
Insulation Class
Class B
Temperature Rise (F)
176 °F
Approvals
CE, UL
Net Weight
15.69 lbs
Gross Weight
16.25 lbs
Brand
HAMMOND POWER SOLUTIONS
Part Number
PH500MGJ
Specification Met
Ul 506, Ul (Canada and Us), Ce
Number of Items
1
Global Trade Identification Number
00803423078577
Included Components
Cap
Unit Count
1.0 Count
ASIN
B07BB2GF3L
