Hammond Manufacturing 1435SSA Pushbutton Enclosure 1 Hole 30.5 mm

Brand: HAMMOND MANUFACTURING
SKU: 1435SSA
Availability: In Stock

Ships same day if ordered by 12 pm
$303.04
$303.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

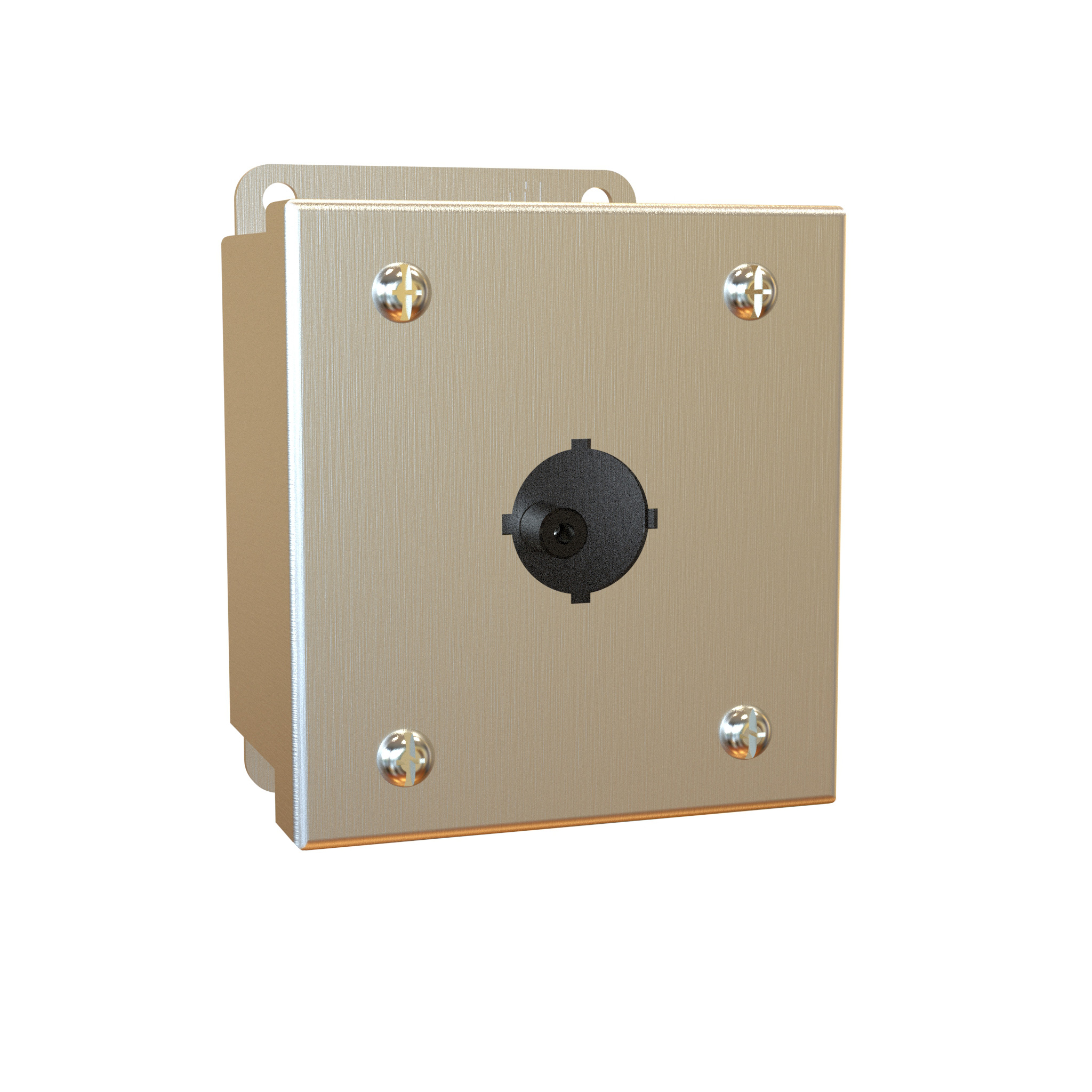

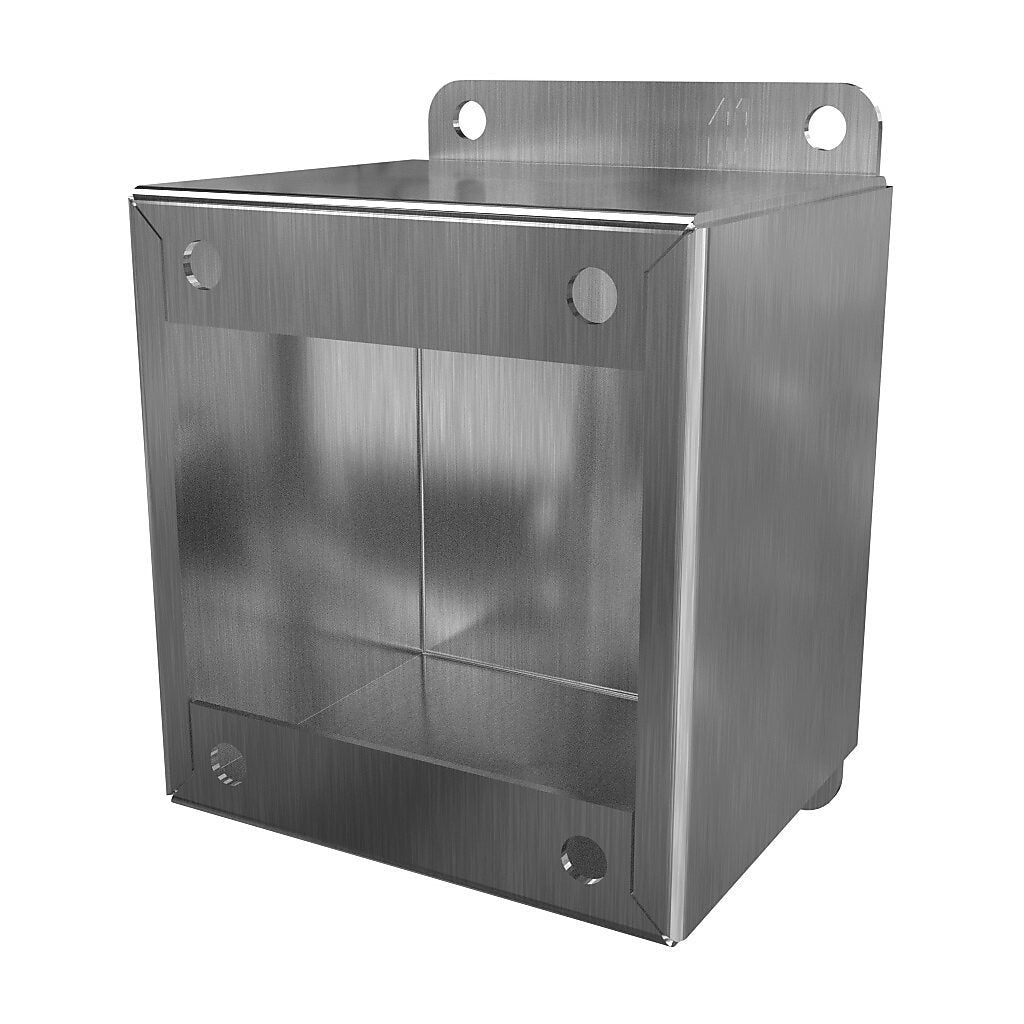

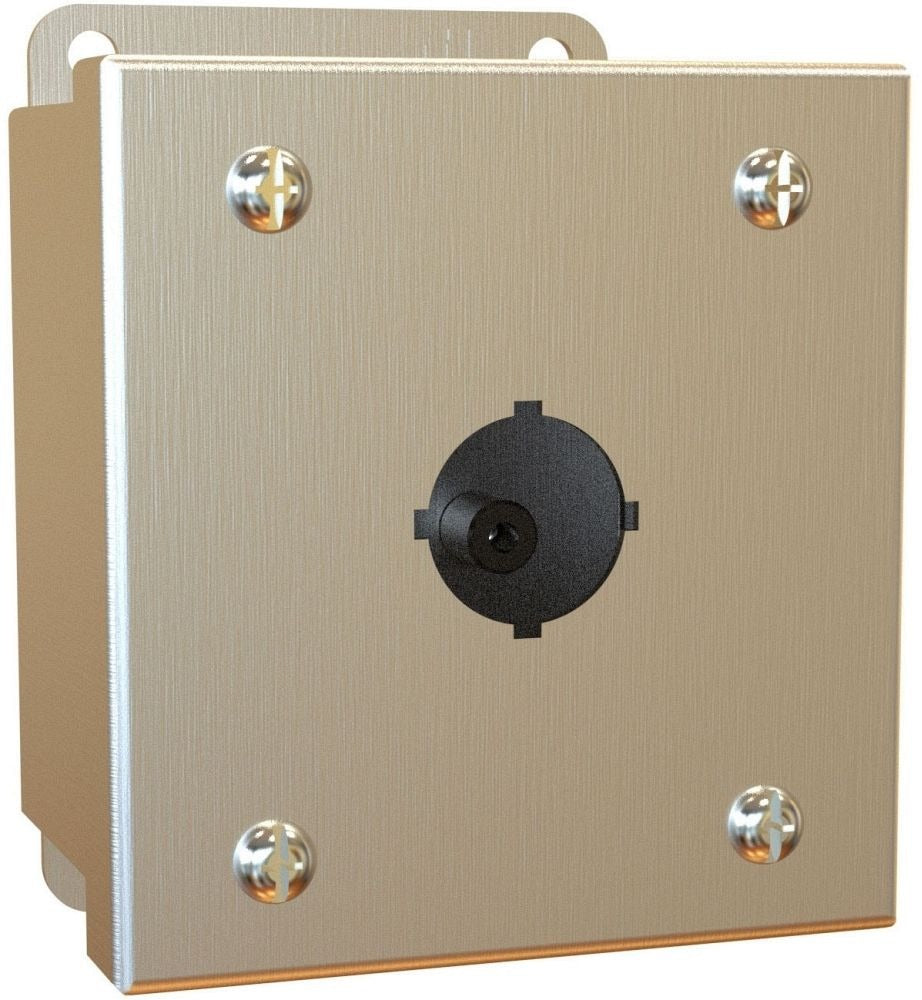

Hammond Manufacturing 1435SSA is a 304 stainless steel pushbutton enclosure with one 30.5 mm hole, rated Type 4/4X (IP66) for protection against dust, oil and water. The compact enclosure measures 3.50 in x 3.25 in x 2.75 in and is designed to accept standard heavy-duty oil-tight pushbuttons, switches and pilot lights while providing corrosion-resistant protection in harsh environments.

  • Constructed of 304 stainless steel; 1 hole sized for 30.5 mm pushbuttons
  • Type 4/4X (IP66) rating for protection from dirt, dust, oil and water
  • Dimensions 3.50 in x 3.25 in x 2.75 in; approximate weight 2 lb

Product Highlights

Single-hole 30.5 mm 304 stainless steel enclosure, Type 4/4X (IP66) protection, compact 3.50 x 3.25 x 2.75 in footprint

Product Information

Standard Information

  • Brand: HAMMOND MANUFACTURING
  • Manufacturer Part Number: 1435SSA
  • Country of Origin: Canada
Technical Specifications
Brand
Hammond Manufacturing
Manufacturer Part Number
1435SSA
Series
1435SS Series
Product Type
Pushbutton enclosure
Material
304 stainless steel
Finish
Unfinished
Number of Holes
1
Hole Size
30.5 mm
NEMA Rating
Type 4/4X
IP Rating
IP66
Dimensions (H x W x D)
3.50 in x 3.25 in x 2.75 in (89 mm x 83 mm x 70 mm)
Height
3.50 in
Width
3.25 in
Depth
2.75 in
Weight
2 lb
Mounting Type
Wall (welded brackets)
Cover Type
Hinged screw cover with captive stainless steel cover screws
Gasket
Oil-resistant gasket
Construction Gauge
14 gauge (series formed construction; variants may use 16 gauge)
Certifications
UL 508A, CSA, CE, IEC 60529
Compliance
RoHS compliant, REACH compliant, USMCA compliant
Country of Origin
Canada
UPC
623980410005
UL File Number
E65324
