Product Description

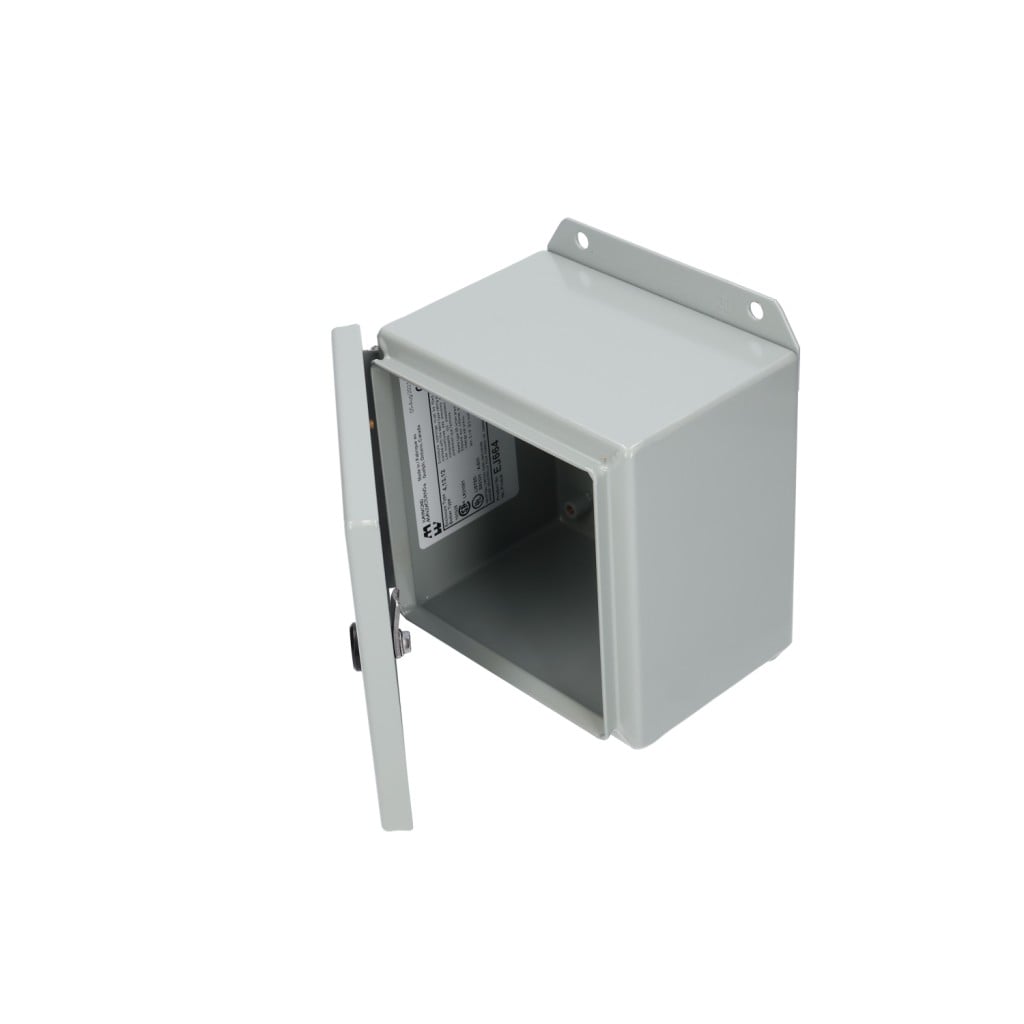

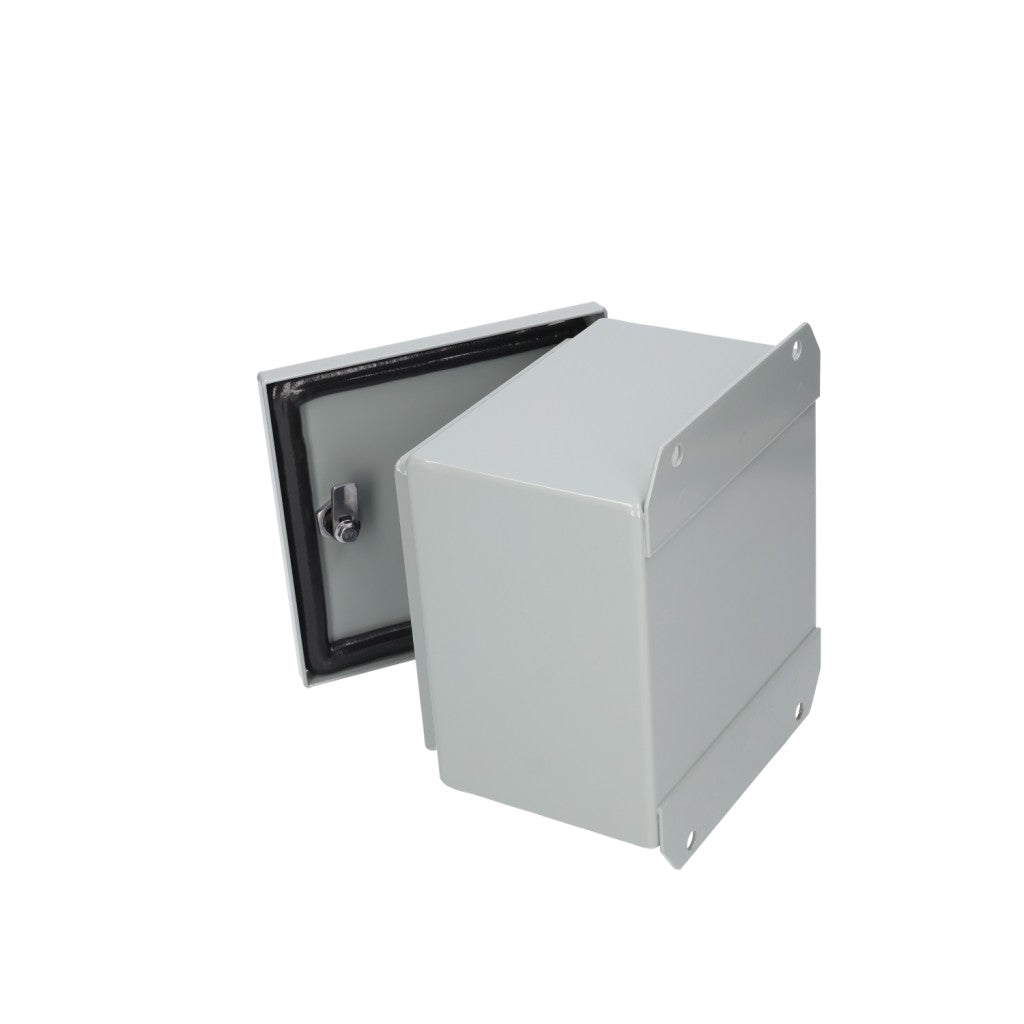

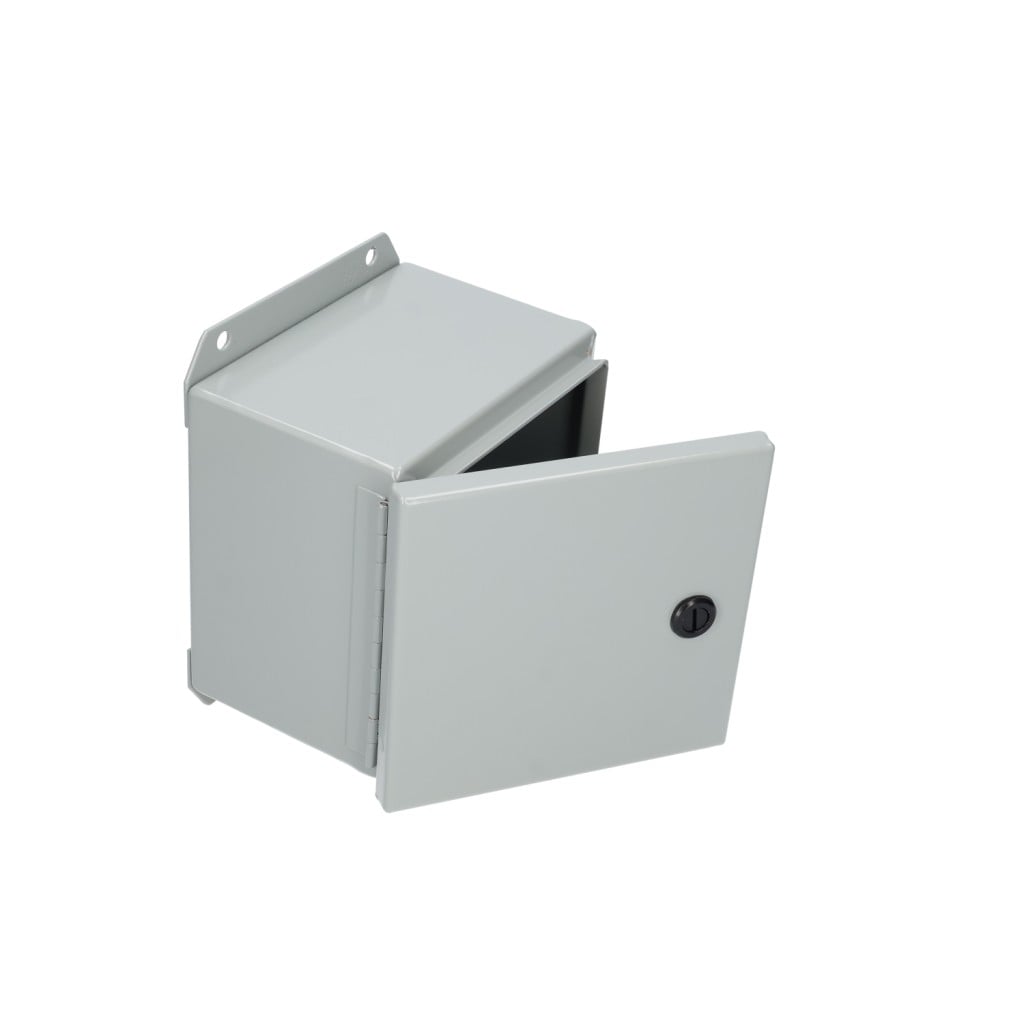

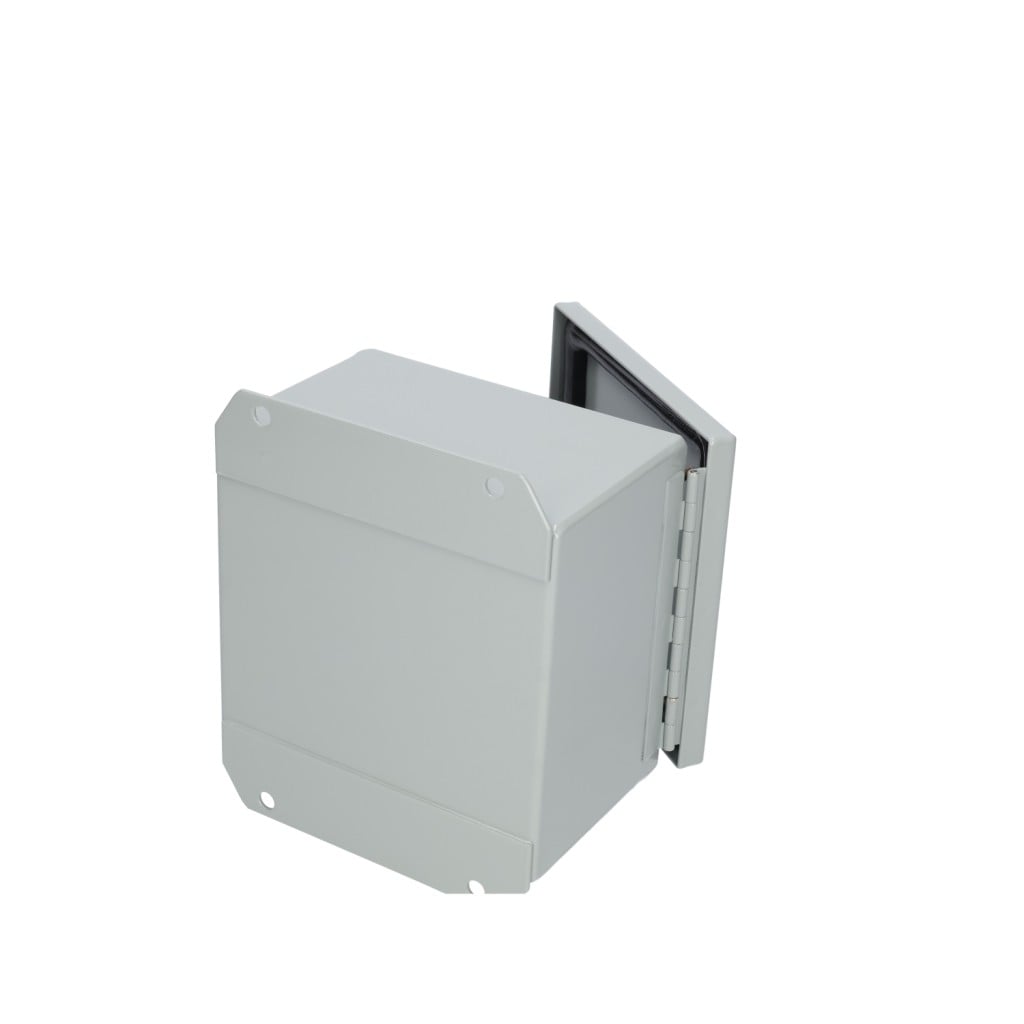

The Hammond EJ664 N4,12 Eclipse Junior enclosure with panel measures 6 x 6 x 4 inches. Designed to enclose electrical and electronic equipment, it protects against harsh environments. It features a continuous hinged cover, quarter-turn latch, and a removable inner panel.
- Constructed from 16-gauge steel with continuously welded seams.
- Features a formed lip on the enclosure to exclude liquids and contaminants.
- Includes internal threaded weld studs for mounting inner panels.
Product Highlights
This enclosure is ideal for protecting electrical components in demanding industrial settings, offering robust construction and secure sealing.
Product Information
Standard Information
-
Brand: Hammond
-
Manufacturer Part Number: EJ664
Technical Specifications
-
Part Number: EJ664
-
Series: Eclipse Junior
-
Short Description: ECLIPSE JR. N4 - 1 DR WALLMNT
-
Long Description: N4,12 Eclipse Junior encl w/ panel - 6 x 6 x 4 - Steel/Gray
-
Size / Dimension: 6.000" L x 6.000" W (152.40mm x 152.40mm)
-
Shipping Weight: 4.88 lbs (2.21 kg)
-
UNSPSC: 39121324
-
UPC: 623980357669
-
UL File #: E65324
-
CSA Cert. #: LR21001
-
REACH Compliant: Yes
-
RoHS Compliant: Yes
-
Packaging Type: Box
-
Material: Metal, Steel
-
Color: Gray
-
Finish Type: Steel
-
Specification Met: CCC
-
Design: Hinged Door, Lid
-
Thickness: 16 Gauge
-
Part Status: Active
-
Features: Interior Panels, Mounting Flange, Stainless Steel Hinges
-
Container Type: Box
-
Ratings: IP66, NEMA 3R,4,12,13, UL-508
-
Height: 4.000" (101.60mm)
-
Area (L x W): 36.0in² (232cm²)
-
Width: 6.00
-
Panel Length: 4.88
-
Overall Size (L x W x D) Inches: 6.00 x 6.00 x 4.00
-
Mounting Brackets: 14 gauge welded brackets provided
-
Hinge: 304 stainless steel with 180 Degree opening
-
IEC 60529: IP66
-
Mount Hole Centers Width: 4.00
-
Length: 6.00
-
Panel Width: 4.88
-
Finish: ANSI 61 Gray
-
UL 508 TYPE: 3R, 4, 12 and 13
-
Depth: 4.00
-
Dim F (Depth from Panel: 3.92
-
Dim J (Latching offset): 3.00
-
Door latches: Included quarter turn slot requiring tool for opening
-
Mount Hole Centers Length: 6.75
-
Overall Dims: (6 x 6 x 4)
-
Eccn: EAR99
-
Hammond Product Group: electrical
-
Hammond Product Type: enclosure
-
Hammond Series: EJ
-
Package-Type: Box
-
Lead-Time Weeks: 11
-
Standard Stock: Yes
-
Capacity: 144 cu-in
-
Cover Type: Continuous Hinged
-
Lock: Quarter-Turn Latch
-
Mounting Type: Wall
-
NEMA Rating: NEMA 3R/4/12/13
