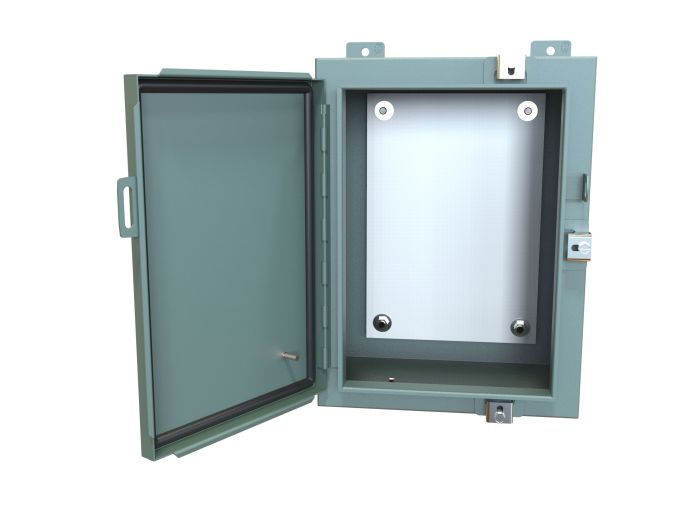

Hammond 1418N4K12 N4 Wallmount Enclosure w/Panel 30 x 24 x 12

Product Description

The Hammond 1418N4K12 N4 Wallmount Enclosure with Panel is designed to house electrical, electronic, hydraulic, or pneumatic controls. Compliant with NEMA Type 3R, 4, 12, and 13, and IEC 60529 (IP66) standards, this enclosure features a seamless poured-in-place gasket and continuously welded seams. It is suitable for use as an instrument enclosure, electrical junction box, or terminal wiring enclosure.

• Constructed from 14-gauge steel.
• Features a grounding stud inside and a bonding stud on the door.
• Offers protection in wet, corrosive, and outdoor environments.

Product Highlights

The Hammond 1418N4K12 enclosure provides a secure housing for sensitive components in demanding industrial settings.

Product Information

Standard Information

• Brand: Hammond
• Manufacturer Part Number: 1418N4K12

Technical Specifications

• Part Number: 1418N4K12
• Series: Type 4 Mild Steel Wallmount Enclosure (1418 N4 Series)
• Short Description: NEMA4 PNL ENCL 30X24X12
• Long Description: N4 Wallmount Encl w/panel - 30 x 24 x 12 - Steel/Gray
• Size H x W x D: 30 in x 24 in x 12 in (762 mm x 610 mm x 305 mm)
• UNSPSC: 39121324
• UPC: 623980380803
• UL File #: E65324
• CSA Cert. #: LR21001
• REACH Compliant: Yes
• RoHS Compliant: Yes
• Product Type: Electrical Enclosure
• Material: Mild Steel
• Length: 30 in.
• Width: 24 in.
• Height: 12 in.
• Agency Approvals: csa, ul, ce, NEMA type-3r, type-13, type-4
• Manufacturer Series: 1418N4
• IP Rating: IP66
• USMCA Compliant: Yes
• ECCN: EAR99
• Category: Boxes, Enclosures, Racks
• Boxes: Boxes
• Mfr: Hammond Manufacturing
• Part Status: Active
• Container Type: Box
• Size / Dimension: 30.000" L x 24.000" W (762.00mm x 609.60mm)
• Area (L x W): 720in² (4645cm²)
• Design: Hinged Door, Lid
• Metal: Metal, Steel
• Thickness: 14 Gauge
• Features: Interior Panels, Mounting Flange
• Ratings: IP66, JIC EGP-1-1967, NEMA 3R,4,12,13, UL-508
• Material Flammability Rating: -
• Manufacturer: Hammond Manufacturing
• Product Series: 1418N4
• Family Series: Hammond Manufacturing Enclosures, 1418N4 Series
• Description: ENCLOSURE, 30in.Hx24in.Wx12in.D STEEL, SINGLE DOOR, PANEL INCLUDED
• Composition: Metallic
• Number of Doors: 1
• Cover Design: Hinged
• Window/Clear Cover: No
• Latching Mechanism: Clamps
• Panel Included: Yes
• NEMA Rating: NEMA 12, NEMA 13, NEMA 3R, NEMA 4
• Nominal Height: 30 "
• Nominal Width: 24 "
• Nominal Depth: 12 "
• Approvals: CE, CSA, UL
