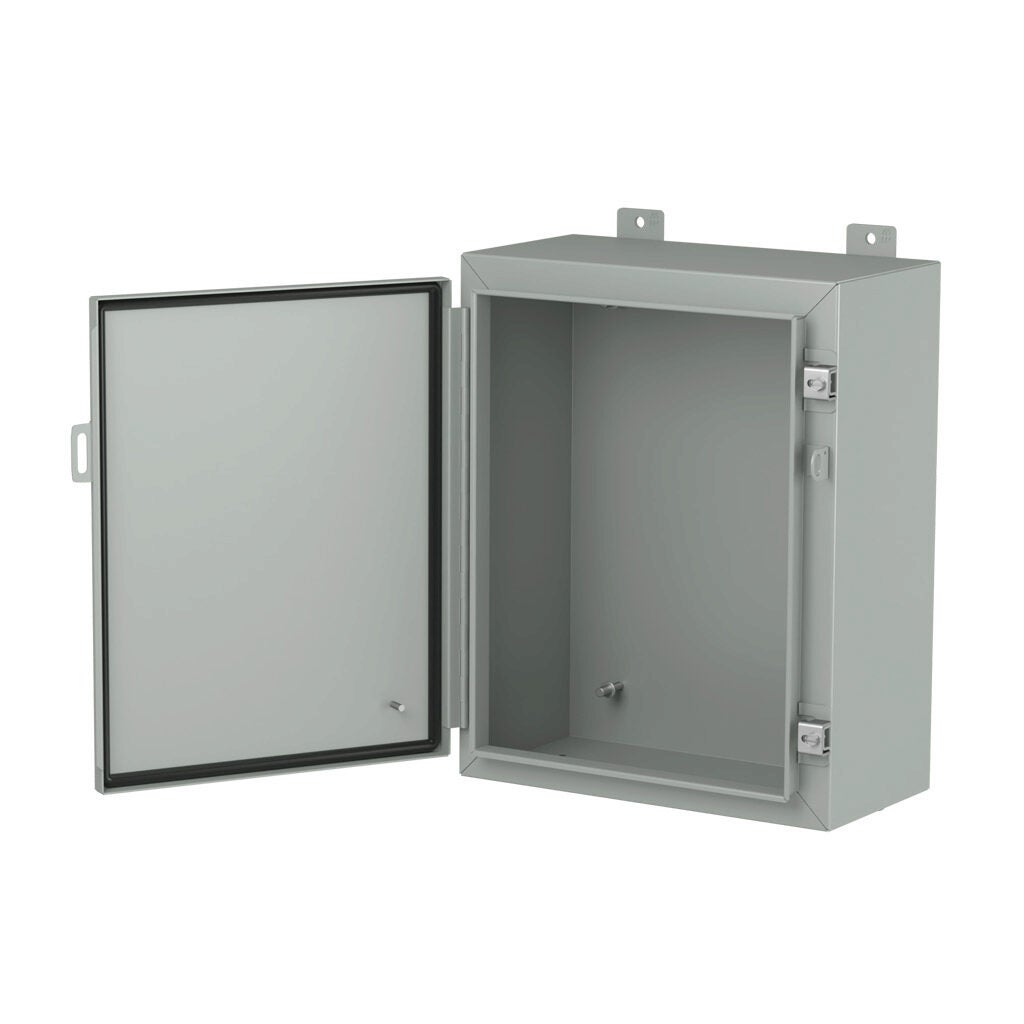

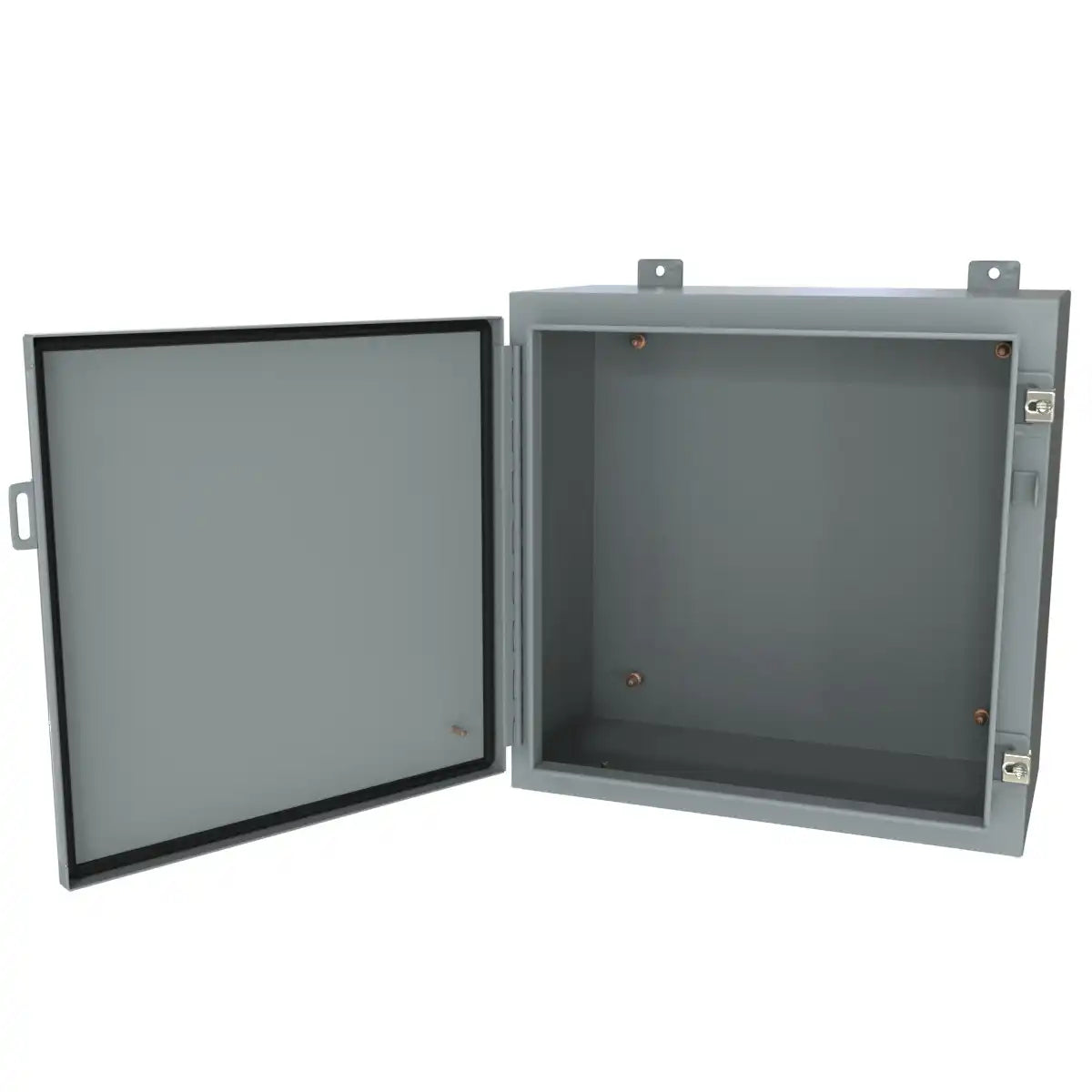

Hammond 1418C8LP Type 4/12 Mild Steel Wallmount Enclosure Less Panel 20 x 16 x 8 in

Product Description

Hammond 1418C8LP is a Type 4/12 mild steel wallmount enclosure supplied less panel, measuring 20 x 16 x 8 in (508 x 406 x 203 mm). It provides protection against dust and splashing water for indoor or outdoor electrical installations and is UL-filed (E65324) and REACH and RoHS compliant. The enclosure's standard 1418LP form factor and mount provisions accommodate subpanels and accessories sold separately.

• NEMA Type 4/12 protection for dust and splash resistance; suitable for indoor or outdoor installations
• Dimensions 20 x 16 x 8 in (508 x 406 x 203 mm); mild steel construction; supplied less panel
• UL file E65324; REACH and RoHS compliant; wallmount design with padlock provision and stainless steel clamp latches

Product Highlights

Type 4/12 mild steel wallmount enclosure, 20 x 16 x 8 in, supplied less panel; UL file E65324; REACH and RoHS compliant.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: 1418C8LP
• Country of Origin: Canada

Technical Specifications

• Brand: Hammond
• Manufacturer: Hammond Manufacturing
• Manufacturer Part Number: 1418C8LP
• Series: 1418LP
• Type / Rating: Type 4/12
• IP Rating: IP66
• Material: Mild steel (carbon steel)
• Material Thickness: 0.079 in (2.00 mm)
• Dimensions (H x W x D): 20 in x 16 in x 8 in (508 mm x 406 mm x 203 mm)
• Mounting: Wallmount
• Panel: Supplied less panel
• Cover Type: Single-door
• Hinge Type: Continuous hinge
• Number of Hinges Per Door: 1
• Latch Type: Stainless steel clamps
• Number Of Latches: 2
• Padlock Attachment Type: Padlock hasp and staple
• Integral Mounting Feet: Yes
• Finish: Gray powder coat (ANSI 61)
• UL File Number: E65324
• Certifications / Standards: REACH compliant; RoHS compliant; UL-508A (noted in manufacturer data)
• UNSPSC: 39121324
• UPC: 623980364629
• HS Code: 8538.10
• Country Of Origin: Canada
