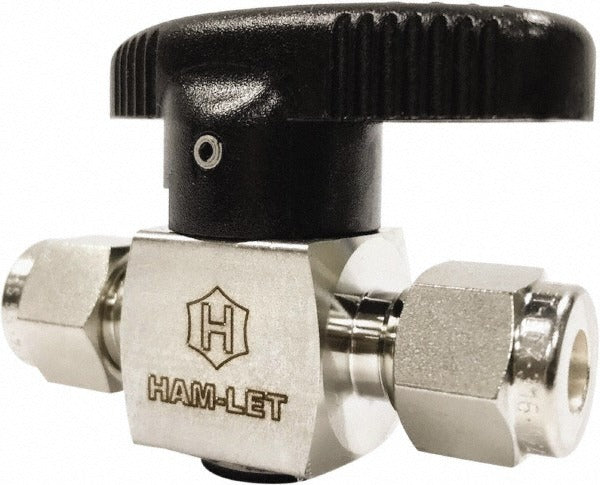

Ham-let 3208525 Plug Valve 3000 Psi 1/2 in 316 Ss

Product Description

The HAM-LET 3208525 is a one-way inline instrumentation plug valve designed for high-pressure fluid and gas control in precision instrument tubing systems. Built from 316/316L stainless steel with a reinforced PTFE seal, it handles working pressures up to 3,000 psi and operates down to -10 degrees F. The wedge handle provides positive shutoff in a compact body measuring under 3 inches in any direction. Licensed plumbers, pipefitters, and instrumentation technicians install this valve in process, analytical, and control-line applications where corrosion resistance and leak-tight performance are required.

This valve is suited for 1/2 inch pipe instrumentation lines in both industrial and commercial process systems. Compression x Compression CPI end connections make it compatible with standard instrumentation tubing without welding or threading. Typical applications include chemical processing, oil and gas sampling lines, hydraulic instrument tubing, and high-purity fluid control panels where 316/316L stainless steel is specified for corrosion or compatibility reasons.

Key Features

• 3,000 psi maximum working pressure rating for high-pressure instrumentation service
• 316/316L stainless steel body provides corrosion resistance in harsh process environments
• Reinforced PTFE seal ensures leak-tight shutoff across the rated pressure and temperature range
• Compression x Compression CPI end connections eliminate threading or welding during installation
• Wedge handle design delivers positive, single-motion open and close operation
• Rated to -10 degrees F minimum working temperature for low-temperature service

Compatibility

Designed for use with 1/2 inch instrumentation tubing systems using CPI-style compression fittings rated for high-pressure process service up to 3,000 psi.

Installation Notes

Installation should be performed by a licensed pipefitter or instrumentation technician familiar with high-pressure tubing systems. Depressurize and isolate the line completely before removing any existing valve or fitting. Follow applicable codes including ASME B31.3 for process piping when selecting sealants, supports, and torque procedures for compression connections. Do not exceed the 3,000 psi working pressure rating or operate below the -10 degrees F minimum temperature limit.
