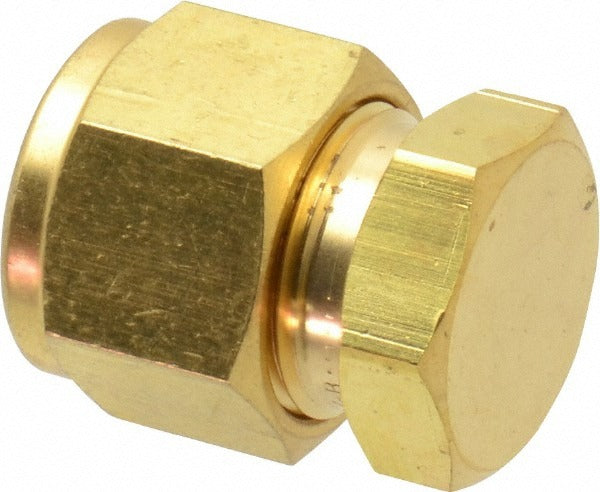

Ham-let 3100847 Compression Tube End Cap Brass

Product Description

The HAM-LET 3100847 is a brass compression tube end cap designed to terminate an open tube end in pneumatic, hydraulic, and fluid-handling systems. The fitting uses a compression-style connection that grips and seals the tube without threading or welding. Constructed from brass and built to ASTM B68 and ASTM B75 standards, it is suited for use within its rated temperature range and common in instrumentation, process, and mechanical piping installations. Plumbers, pipefitters, and instrumentation technicians typically install this type of fitting.

This end cap is used to close off a compression tube line in residential, commercial, or light industrial applications. It is a direct-compression fitting, meaning no solder, thread sealant, or special tooling is required beyond a proper tube cutter and wrenches. It is appropriate for use in systems where clean tube termination and leak-free sealing are required within the rated temperature limits.

Key Features

• Compression end connection for tool-free tube sealing without soldering or threading
• Brass construction meeting ASTM B68 and ASTM B75 standards
• Overall length of 1.15 inches for compact installation in tight spaces
• Rated for use down to -20 degrees C and up to 37 degrees C
• Single-piece fitting, sold individually

Compatibility

Compatible with compression tube systems as an OEM-style end cap; cross-references to Swagelok part number B-810-C. Designed for use in pneumatic and fluid instrumentation tubing applications requiring a compression-style tube termination.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified instrumentation technician. Depressurize and isolate the tube line completely before installing or removing any compression fitting. Ensure the tube end is cut square and deburred before inserting into the fitting. Follow applicable codes such as IPC or ASME B31 for piping system pressure and material requirements.
