Ham-let 3002427 Compression Bulkhead Union 316 Ss

Product Description

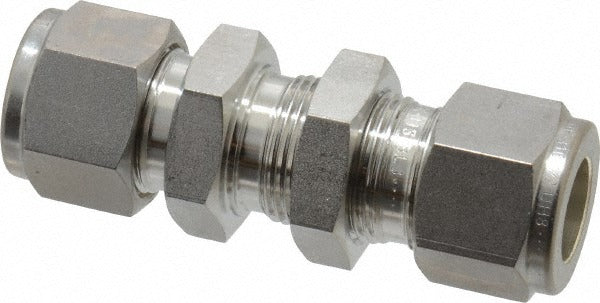

The HAM-LET 3002427 is a compression tube bulkhead union designed for routing tubing through panels, bulkheads, or enclosure walls while maintaining a sealed, leak-resistant connection on both sides. Constructed from 316 stainless steel meeting ASTM A182, ASTM A213, ASTM A269, ASTM A276, ASTM A479, and DIN EN10122-5 and DIN EN10272 standards, this fitting delivers corrosion resistance suited to demanding fluid and gas system applications. The overall length is 2.8 inches and the unit weighs 0.25 pounds. It is installed by licensed pipefitters, plumbers, and industrial instrumentation technicians.

This bulkhead union is used in residential and commercial instrumentation, process piping, pneumatic systems, and fluid handling installations where tubing must pass cleanly through a panel or structural wall. The compression-by-compression end configuration allows connection of tubing on both sides of a bulkhead without welding or flaring. Its 316 stainless steel construction makes it a practical choice in corrosive or washdown environments such as chemical processing, HVAC controls, and compressed gas distribution panels.

Key Features

• 316 stainless steel construction per ASTM A182, ASTM A213, ASTM A269, ASTM A276, and ASTM A479
• Compression x compression end connections for tool-accessible, no-weld installation
• Bulkhead design allows tubing to pass through panels or walls with a sealed fitting on each face
• Overall length of 2.8 inches suits standard panel thicknesses
• Rated for a minimum temperature of -20 degrees F and a maximum temperature of 37 degrees C (approximately 99 degrees F)
• Meets multiple ASTM and DIN standards for material traceability and dimensional conformance

Compatibility

The Swagelok equivalent reference for this fitting is SS-810-61. Designed as an OEM-style replacement or direct-install bulkhead union for compression tube systems using the same end connection type and tube size.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician. Depressurize and isolate the system completely before removing or installing any compression fitting. Follow the fitting manufacturer torque and tube insertion guidelines for proper ferrule seating on compression-style connections. Installations in regulated gas or process systems may be subject to applicable ASME, ASTM, or local mechanical code requirements.
