Ham-let 3002177 Compression Male Elbow 1/8 in Mnpt 316 Ss

Product Description

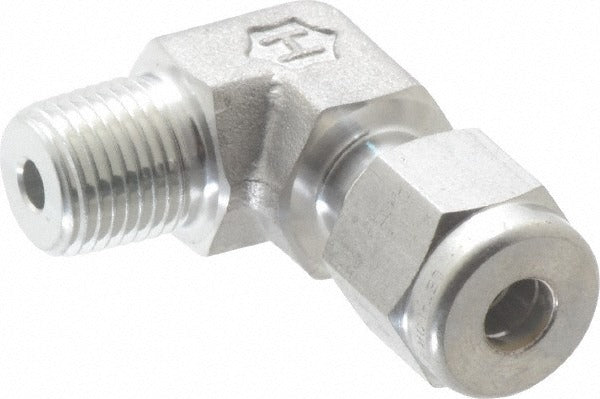

The HAM-LET 3002177 is a compression tube male elbow fitting designed to connect tubing to a male NPT threaded port at a 90-degree angle. Constructed from 316 stainless steel, this fitting meets ASTM A182, ASTM A213, ASTM A269, ASTM A276, and ASTM A479 standards, as well as DIN EN10122-5 and DIN EN10272. It is rated for a maximum working pressure of 10,000 psi, making it suitable for high-pressure instrumentation and process systems. The compression-to-MNPT configuration allows direct connection to 1/8 inch male NPT ports without welding or soldering.

This fitting is used in high-pressure instrumentation tubing systems found in industrial, chemical processing, oil and gas, and laboratory environments. The 1/8 inch thread size suits compact manifold assemblies, instrument connections, and sample-loop piping where space is limited and leak-tight performance is required. Instrumentation technicians and pipefitters install this type of fitting when routing stainless steel tubing to threaded valve bodies, gauges, or transmitters.

Key Features

• 316 stainless steel construction for corrosion resistance in harsh process environments
• Rated to 10,000 psi maximum working pressure
• Compression x MNPT end connections - 1/8 inch thread size
• Meets ASTM A182, A213, A269, A276, A479 and DIN EN10122-5, DIN EN10272 standards
• Operating temperature range: -20 degrees F minimum to 37 degrees F maximum
• Compatible with Swagelok part number SS-300-2-2 as a cross-reference

Compatibility

Cross-references to Swagelok part number SS-300-2-2. Designed as an OEM-style replacement or direct substitute for 1/8 inch compression-to-MNPT male elbow fittings used in high-pressure stainless steel instrumentation tubing systems.

Installation Notes

Installation is typically performed by licensed pipefitters or instrumentation technicians following applicable process piping codes. Depressurize and isolate the system completely before removing or installing any compression fitting. Ensure tubing is cut square, deburred, and fully inserted into the compression body before tightening the nut. Do not overtighten - follow standard compression fitting assembly procedures for the tubing wall thickness and material being used.
