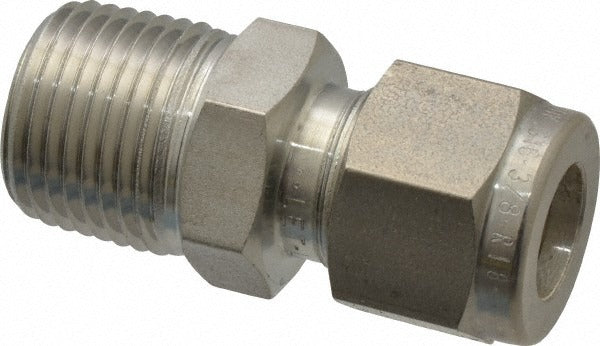

Ham-let 3002005 Compression Connector 3/8 in 316 Ss

Product Description

The HAM-LET 3002005 is a compression tube connector designed to join 3/8-inch OD tubing to a male NPT threaded port. Built from 316 stainless steel, it delivers a maximum working pressure of 7800 psi and an overall length of 1.57 inches. The compression-to-MNPT end configuration makes it a direct fit for instrumentation, hydraulic, and process piping applications where a leak-tight mechanical connection is required. Installation is handled by licensed plumbers, pipefitters, and instrumentation technicians working in industrial and commercial environments.

This connector is used in high-pressure fluid and gas systems where corrosion resistance and material traceability are required. The 316 stainless steel construction meets multiple ASTM and DIN standards, making it suitable for demanding process environments including chemical, petrochemical, oil and gas, and HVAC-related instrumentation lines. The compression fitting end eliminates the need for soldering or welding at the tube connection, simplifying installation in tight or sensitive areas.

Key Features

• 316 stainless steel construction rated to 7800 psi maximum working pressure
• Compression x MNPT end connections for tool-free tube attachment on the compression side
• Overall length of 1.57 inches for compact inline installation
• Rated for temperatures from -20 degrees F to 37 degrees F minimum-to-maximum range
• Meets ASTM A182, ASTM A213, ASTM A269, ASTM A276, ASTM A479, DIN EN10122-5, and DIN EN10272 standards
• Cross-references to Swagelok part number SS-600-1-6

Compatibility

Designed for use with 3/8-inch OD tubing systems using compression fittings on the tube side and a male NPT threaded port on the mating component. Cross-references to Swagelok part number SS-600-1-6.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or instrumentation technician in accordance with applicable codes including ASME B31.3 for process piping. Depressurize and isolate the system completely before disassembling any existing fittings or making new connections. Do not overtighten the compression nut; follow the fitting manufacturer's recommended number of turns past finger-tight. Inspect ferrule seating and thread engagement before returning the system to service.
