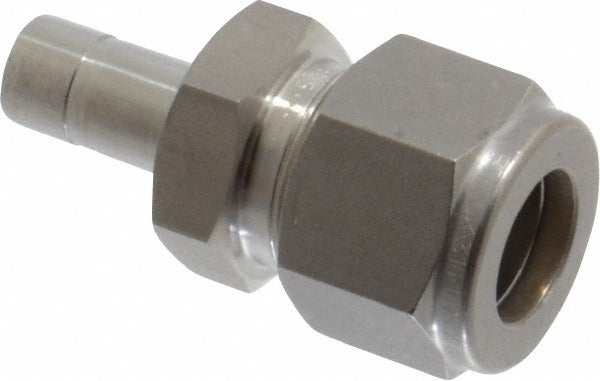

Ham-let 3001886 Compression Tube Reducer Ss

Product Description

The HAM-LET 3001886 is a compression tube reducer fitting designed to transition between a compression end connection and a tube stub in instrumentation and fluid control systems. Constructed from 316 stainless steel and conforming to ASTM A182, ASTM A213, ASTM A269, ASTM A276, ASTM A479, DIN EN10122-5, and DIN EN10272 material standards, this fitting delivers corrosion resistance and dimensional consistency in demanding environments. With an overall length of 1.84 inches and a weight of 0.25 pounds, it is a compact, single-piece reducer suited for high-precision tubing assemblies. Licensed pipefitters, instrumentation technicians, and industrial plumbers are the typical installers.

This fitting is used in industrial process piping, instrumentation tubing runs, and fluid control panel assemblies where a size reduction between a compression fitting and a tube stub connection is required. It is appropriate for both light industrial and commercial applications operating within a rated temperature range of -20 degrees F to 37 degrees F. The Compression x Tube Stub end configuration makes it well suited for connecting standardized compression fittings to tube stubs in tight or inline installations.

Key Features

• 316 stainless steel construction with multiple ASTM and DIN material certifications
• Compression x Tube Stub end connections for inline size reduction
• Overall length of 1.84 inches for compact inline fitment
• Rated for service from -20 degrees F to 37 degrees F
• Meets ASTM A182, A213, A269, A276, A479, DIN EN10122-5, and DIN EN10272 standards
• Single-piece construction, sold individually

Compatibility

Cross-references with Swagelok part number SS-810-R-6. Designed as an OEM-style compression tube reducer for instrumentation and fluid control tubing systems requiring a Compression x Tube Stub transition.

Installation Notes

Installation should be performed by a licensed pipefitter or instrumentation technician in accordance with applicable piping codes. Depressurize and isolate the tubing system fully before disassembling any compression fittings. Do not overtighten compression fittings; follow the fitting manufacturer's standard ferrule-seating procedure. Verify operating temperature compatibility with the system service conditions before installation.
