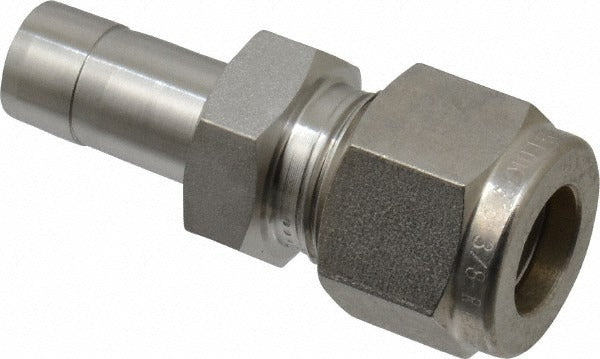

Ham-let 3001877 Compression Tube Reducer 316 Ss

Product Description

The HAM-LET 3001877 is a compression tube reducer fitting designed to connect compression-style tubing to a tube stub end connection. Machined from 316 stainless steel, this reducer meets multiple ASTM and DIN material standards, making it suited for instrumentation, process, and fluid-handling systems where corrosion resistance and dimensional consistency are required. The fitting operates within a temperature range of -20 degrees F to 37 degrees F and measures 1.7 inches in overall length. Installation is performed by instrumentation fitters, pipefitters, or process technicians working on tubing assemblies in industrial and commercial environments.

This reducer is used in applications where a transition is needed between a compression-style tube end and a tube stub connection. It is appropriate for process instrumentation lines, sample systems, and fluid-transfer tubing assemblies. The 316 stainless steel construction handles mildly corrosive media and is common in chemical, petrochemical, and industrial process settings. This fitting is sold individually with a minimum order quantity of one.

Key Features

• 316 stainless steel construction for corrosion resistance in process environments
• Compression x Tube Stub end connections for secure, leak-resistant assembly
• Overall length of 1.7 inches for compact inline installation
• Meets ASTM A182, A213, A269, A276, A479, DIN EN10122-5, and DIN EN10272 standards
• Rated for temperatures from -20 degrees F to 37 degrees F
• Cross-reference to Swagelok part number SS-600-R-6

Compatibility

Cross-references to Swagelok part number SS-600-R-6. Designed as an OEM-style compression tube reducer for instrumentation and process tubing systems requiring a compression x tube stub connection in 316 stainless steel.

Installation Notes

Installation of compression tube fittings should be performed by a qualified pipefitter or instrumentation technician following applicable system codes and the fitting manufacturer's assembly procedures. Depressurize and isolate the tubing circuit before disassembly or fitting installation. Do not overtighten compression fittings; follow the manufacturer's specified number of turns past finger-tight rather than applying arbitrary torque. Verify tubing OD dimensions and wall specifications are compatible before assembly.
