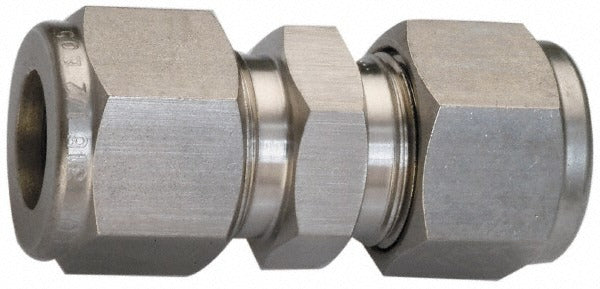

Ham-let 3001541 Compression Tube Union 316 Ss

Product Description

The HAM-LET 3001541 is a compression tube union designed to join two compression-end tube lines in a single inline connection. Built from 316 stainless steel, this union delivers corrosion resistance suited for aggressive media and demanding process environments. The fitting measures 2.05 inches in overall length and weighs 0.25 pounds. It meets multiple material and dimensional standards, making it appropriate for instrumentation, fluid handling, and gas service installations where material traceability and compliance are required. Licensed plumbers, pipefitters, and instrumentation technicians are the primary installers for this type of fitting.

The 3001541 is suited for both residential and commercial applications that call for a reliable inline tube union with compression end connections on both sides. Compression x compression configuration allows the fitting to connect two tube runs without welding or threading, making it practical for instrument tubing, process piping, and fluid control systems. The 316 stainless steel construction handles exposure to corrosive fluids and moderate temperature ranges, including a rated minimum temperature of -20 degrees F.

Key Features

• 316 stainless steel construction for corrosion resistance in demanding process environments
• Compression x compression end connections on both sides for tool-assisted, weld-free assembly
• Overall length of 2.05 inches for compact inline installation
• Meets ASTM A182, ASTM A213, ASTM A269, ASTM A276, ASTM A479, DIN EN10122-5, and DIN EN10272 standards
• Rated minimum operating temperature of -20 degrees F
• Material grade 316 provides resistance to chloride and oxidizing environments

Compatibility

Designed as an OEM-style compression tube union for instrumentation and fluid handling systems requiring 316 stainless steel construction with compression end connections on both sides.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or instrumentation technician familiar with compression fitting assembly procedures. Shut down and depressurize the system completely before disconnecting or installing any tube fitting. Compression fittings require correct tube preparation, including square cuts and proper insertion depth, to achieve a leak-free seal. Follow applicable codes including ASME B31.3 for process piping where required by jurisdiction.
