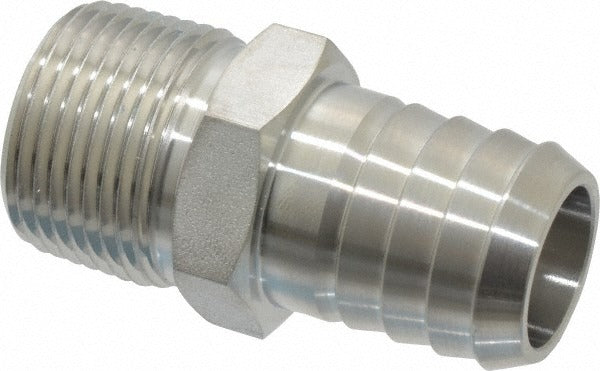

Ham-let 3001310 Pipe Hose Connector 3/4 in 316 Ss Threaded

Product Description

The HAM-LET 3001310 is a threaded pipe hose connector designed for demanding fluid and gas piping systems. Constructed from 316 stainless steel, it delivers strong corrosion resistance in aggressive media and high-pressure environments. The 3/4 inch fitting size accommodates standard hose and pipe connections, and the threaded connection type conforms to ASME/ANSI B1.20.1 (1983) thread standards. With a pressure rating of 6,800 psi, this connector is suited for industrial and refinery piping applications where pressure integrity and material compatibility are critical. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers.

This hose connector is intended for use in high-pressure industrial piping systems, including refinery and process piping governed by ANSI B 31.1 power piping codes. The 316 stainless steel construction makes it appropriate for corrosive service environments where carbon steel fittings are not acceptable. It is sold in a package quantity of one, suitable for single-point repair or new installation work in both commercial and industrial settings.

Key Features

• 316 stainless steel construction provides corrosion resistance in aggressive or wet service conditions
• Rated to 6,800 psi for high-pressure piping applications
• Threaded connection per ASME/ANSI B1.20.1 (1983) for standardized fitment
• Complies with ANSI B 31.1 Power Piping Code and Refiner Piping Code standards
• 3/4 inch fitting size for common hose and pipe connections

Compatibility

Designed as a threaded hose connector for industrial and refinery piping systems governed by ANSI B 31.1 and ASME/ANSI B1.20.1 (1983) standards. Suitable for 3/4 inch threaded connections in high-pressure process piping applications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber familiar with high-pressure industrial piping systems and applicable code requirements. Depressurize and isolate the line completely before removing or installing any fitting. Thread engagement should follow ASME/ANSI B1.20.1 guidelines, and appropriate thread sealant rated for the service media and pressure should be used. Verify system pressure rating does not exceed the 6,800 psi fitting rating after installation.
