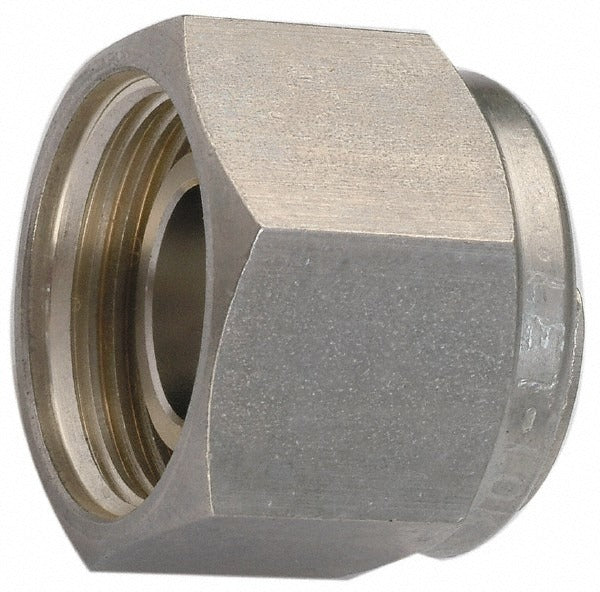

Ham-let 3001224 Compression Tube Plug 316 Ss

Product Description

The HAM-LET 3001224 is a compression-style tube plug manufactured from 316 stainless steel. It is designed to terminate or dead-end a compression tube line, blocking flow at an open tube end without requiring a welded or threaded connection. The 316 stainless steel construction meets multiple ASTM and DIN material standards, making it suitable for demanding industrial, instrumentation, and process-piping environments. This fitting is installed by licensed pipefitters, instrumentation technicians, and plumbing professionals working on tubing systems that require a reliable, leak-tight end cap.

This compression tube plug is suited for use in instrumentation tubing runs, process lines, and hydraulic or pneumatic systems where an open port must be sealed. The compression end connection allows for installation without specialized welding equipment, making it a practical choice for field service and panel fabrication work. It carries a rated minimum operating temperature of -20 degrees F, and a maximum operating temperature of 37 degrees C, positioning it for moderate-temperature service. An equivalent Swagelok cross-reference part number is SS-1210-P.

Key Features

• 316 stainless steel construction resists corrosion in aggressive media and process environments
• Compression end connection provides a leak-tight seal without welding
• Meets ASTM A182, ASTM A213, ASTM A269, ASTM A276, ASTM A479, DIN EN10122-5, and DIN EN10272 material standards
• Rated for service down to -20 degrees F minimum temperature
• Cross-references to Swagelok part number SS-1210-P

Compatibility

Designed as an OEM-style compression tube plug for instrumentation, process, and industrial tubing systems requiring a termination fitting in 316 stainless steel. Cross-references to Swagelok SS-1210-P for direct replacement applications.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician familiar with compression fitting assembly procedures. Depressurize and isolate the tubing system completely before removing any existing fitting or installing this plug. Follow the fitting manufacturer's recommended ferrule-seating procedure - do not overtighten, as compression fittings are torque-sensitive. Verify system pressure ratings and applicable codes such as ASME B31.3 or IFGC before returning the line to service.
