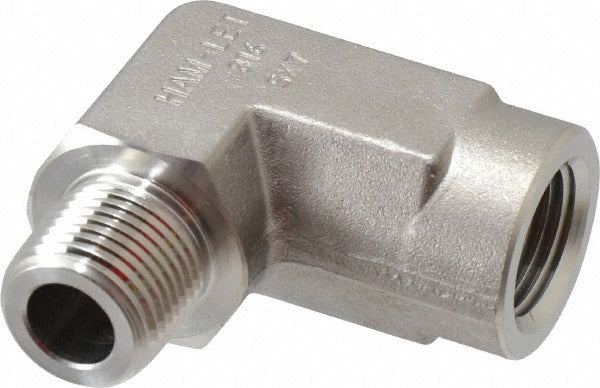

Ham-let 3001125 90 Degree Street Elbow 3/8 in 316 Ss

Product Description

The HAM-LET 3001125 is a 90-degree street elbow fitting manufactured from 316 stainless steel for use in high-pressure threaded piping systems. It connects via FNPT on one end and MNPT on the other, allowing a direction change without a separate coupling. Rated to 5,000 psi, this fitting meets ANSI B 31.1 Power Piping and ASME/ANSI B1.20.1 (1983) thread standards. At 0.25 pounds, it is a compact, single-piece component sized at 3/8 inch. Licensed plumbers, pipefitters, and industrial maintenance technicians install this type of fitting in process and utility piping applications.

This street elbow is suited for industrial, refinery, and process piping installations where a 90-degree change in direction is required in a 3/8-inch threaded line. The FNPT x MNPT configuration allows direct makeup into a run of pipe or into a valve or instrument port without an additional nipple. Its 316 stainless steel construction resists corrosion in chemical process, steam, and other aggressive service environments where standard carbon steel fittings would be unsuitable.

Key Features

• 5,000 psi pressure rating for high-pressure piping service
• 316 stainless steel construction provides corrosion resistance in aggressive media
• FNPT x MNPT end connections allow direct inline makeup without a separate nipple
• Compliant with ANSI B 31.1 Power Piping Code and ASME/ANSI B1.20.1 (1983) thread standard
• Compact 3/8-inch size fits tight-space installations

Compatibility

Designed as an OEM-style threaded street elbow for 3/8-inch FNPT x MNPT piping connections in systems built to ANSI B 31.1 and ASME/ANSI B1.20.1 specifications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable codes, including ANSI B 31.1 where required. Isolate and depressurize the piping system completely before disassembly or installation of any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before makeup; do not over-torque, as stainless steel threads are susceptible to galling. Verify system pressure rating compatibility before returning the line to service.
