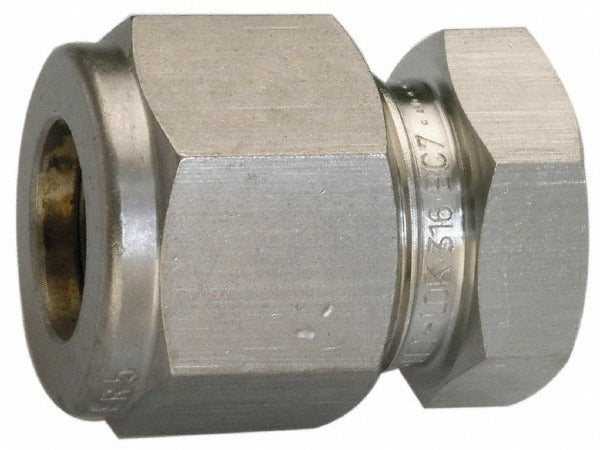

Ham-let 3001052 Compression Tube End Cap 316 Ss

Product Description

The HAM-LET 3001052 is a compression-style tube end cap machined from 316 stainless steel for use in instrumentation and process piping systems. It terminates a compression tube run by sealing the open end of a tube without the need for welding or threading. The fitting meets ASTM A182, ASTM A213, ASTM A269, ASTM A276, ASTM A479, DIN EN10122-5, and DIN EN10272 material and dimensional standards. At 0.96 inches in overall length and weighing approximately 0.25 pounds, this end cap is compact and suited for tight installations where space is limited. Licensed pipefitters, instrumentation technicians, and plumbers typically install this type of fitting.

This end cap is designed for compression tube termination in residential and light commercial instrumentation lines, process control tubing, and general industrial fluid systems operating within a temperature range of -20 degrees F to 37 degrees F. The compression end connection makes it appropriate for use wherever a leak-tight mechanical seal is required on a tube end without requiring specialized tooling or flame. It is interchangeable with Swagelok part number SS-500-C in applicable installations.

Key Features

• 316 stainless steel construction for corrosion resistance in process and instrumentation environments
• Compression end connection - no welding or threading required
• Meets ASTM A182, A213, A269, A276, A479 and DIN EN10122-5, DIN EN10272 standards
• Rated for service from -20 degrees F to 37 degrees F
• Compact overall length of 0.96 inches suitable for confined installations
• Cross-references to Swagelok part number SS-500-C

Compatibility

Designed as a compression-style tube end cap compatible with standard compression tube fittings. Cross-references to Swagelok part number SS-500-C for applicable instrumentation and process tubing installations.

Installation Notes

Installation is performed by a licensed pipefitter or instrumentation technician. Depressurize and isolate the tube line completely before removing or installing any compression fitting. Use appropriate tube preparation practices - ensure the tube end is cut square and deburred before seating the fitting. Follow applicable ASME B31.3 or system-specific piping codes for process instrumentation connections.
