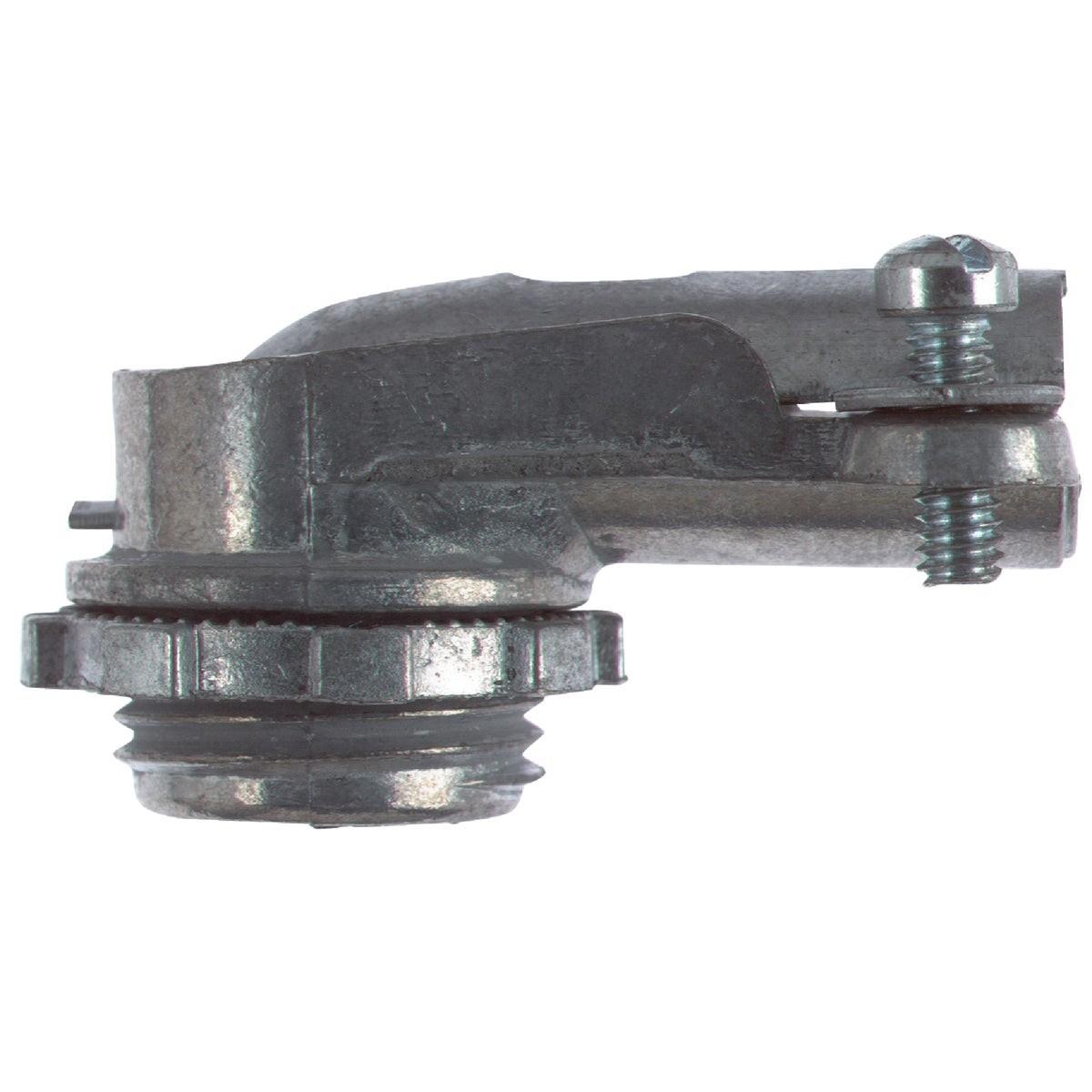

Halex 91102 3/4 in Clamp 90 Degree Armored Cable Connector

Product Description

The HALEX 91102 is a 3/4 inch clamp-style, 90-degree connector designed for terminating armored cable, flexible steel conduit, or flexible aluminum conduit at an enclosure knockout. The connector features an integrated cable stop that ensures consistent seating depth and a free-floating wing that pivots to grip the conduit or armor evenly without binding. This eliminates the need to rotate the connector body during installation. Electricians use this fitting where a 90-degree exit angle is required at junction boxes, panels, or enclosures in both new construction and retrofit work.

The HALEX 91102 is suited for residential and light commercial electrical installations where armored cable (AC) or flexible metal conduit (FMC) must transition into a box or enclosure at a right angle. Common applications include equipment connections, appliance hookups, and any run where a straight connector would create an awkward bend radius. The 3/4 inch trade size matches standard 3/4 inch flexible conduit and armor cable diameters. Minimum pack quantity is 4 units per package.

Key Features

• 90-degree body routes armored cable or flexible conduit into enclosures at a right angle, reducing bend stress
• Integrated cable stop sets consistent insertion depth for repeatable, code-compliant terminations
• Free-floating wing design grips conduit evenly without requiring connector body rotation
• Compatible with armored cable, flexible steel conduit, and flexible aluminum conduit in 3/4 inch trade size
• UL Listed for use in standard electrical enclosure applications

Compatibility

Designed as an OEM-style replacement and standard fitting for 3/4 inch armored cable (AC), flexible steel conduit (FMC), and flexible aluminum conduit terminations at electrical enclosure knockouts.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for armored cable and flexible conduit terminations. De-energize the circuit and verify zero voltage at the enclosure before beginning work. Insert the conduit or armor fully until it seats against the cable stop, then tighten the clamp screw to secure the fitting. Do not overtighten the clamp, as this can deform flexible conduit or damage armor cladding.

Technical Specifications

• Trade Size: 3/4 inch
• Connector Type: Clamp, 90 Degree
• Compatible Wiring Methods: Armored cable, flexible steel conduit, flexible aluminum conduit
• Weight: 0.203 pounds
• Listing: UL Listed
• Package Quantity: 4 units minimum

Standard Information

• Brand: HALEX
• Manufacturer Part Number: 91102
