Halco 55158 Electromagnetic HID Ballast Kit 1000W (5-Tap CWA)

Product Description

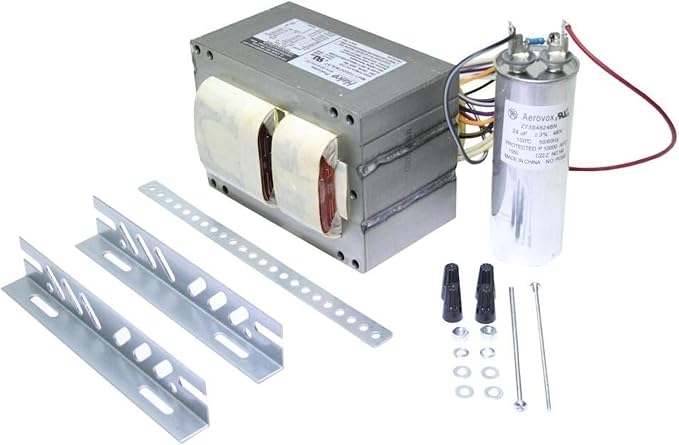

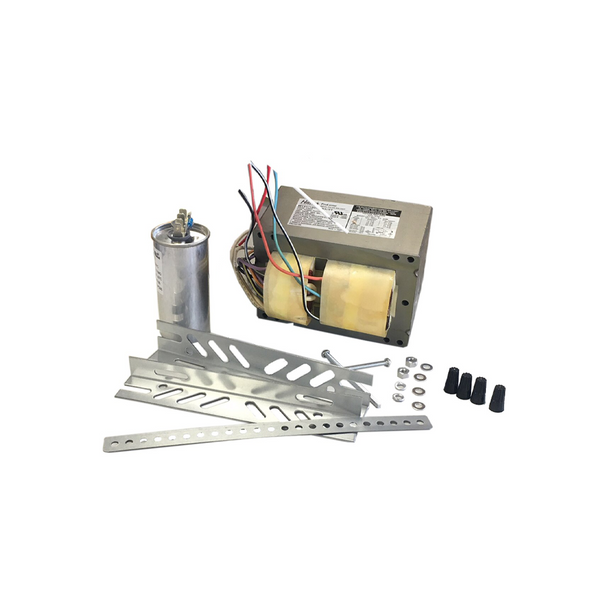

Halco 55158 is an electromagnetic HID ballast kit designed to operate 1000W metal halide lamps (primary lamp MH1000, ANSI M47). The 5-tap constant wattage circuit (CWA) configuration provides selectable input voltages for standard-start operation in commercial and industrial installations. The kit regulates current for a single 1000W MH lamp and is intended for retrofit and new installation applications where a 1000W MH ballast is required.

• Constant Wattage Circuit (CWA) 5-tap kit for selectable input voltages (120V, 208V, 240V, 277V, 480V)
• Designed for a single 1000W MH lamp (MH1000, ANSI M47) with standard start type
• Electromagnetic core-and-coil ballast intended for commercial and industrial lighting applications

Product Highlights

1000W electromagnetic CWA ballast kit for MH1000 (ANSI M47) lamps with 5 voltage taps for commercial and industrial use.

Product Information

Standard Information

• Brand: HALCO
• Manufacturer Part Number: 55158

Technical Specifications

• Brand: Halco
• Manufacturer Part Number: 55158
• Model: M47/1000CWA/5T/K
• UPC: 807154551583
• Wattage: 1000W
• Lamp Type: HID - Metal Halide (HID-MH)
• Primary Lamp: MH1000
• ANSI Code: M47
• Circuit Type: Constant Wattage Circuit (CWA)
• Start Type: Standard
• Input Voltage: 120V, 208V, 240V, 277V, 480V
• Number of Lamps: 1
• Ballast Type: Electromagnetic (core-and-coil) HID ballast
• Market: Commercial, Industrial
• Weight per Item: 23
• Capacitor Included: Yes
• Capacitor Type: Oil filled
• Capacitance: 24 uF
• Capacitor Rating: 480V, 90C
• Mounting Brackets: Included
• Minimum Start Temperature: -22°F (-30°C)
• Listings and Certifications: cRUus, UL, cUL
