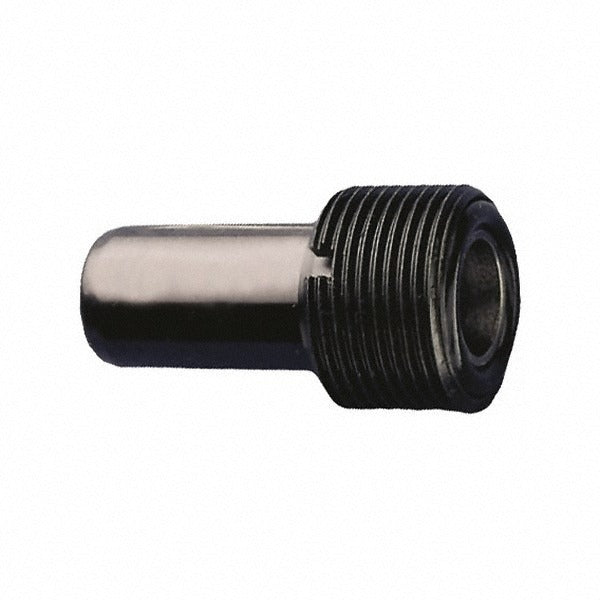

Haimer 85.700.10 Cooling Tube HSK100A Shrink Fit Chuck

Product Description

The HAIMER 85.700.10 is a rotary tool holder cooling tube designed for use with HSK100A taper toolholders equipped with shrink fit chucks. This component routes coolant to the cutting zone during machining operations, helping maintain consistent temperatures at the tool tip and extending cutting tool life. It is a direct replacement or supplemental cooling accessory installed on the toolholder body before or during spindle engagement. Toolroom technicians and CNC machinists working with high-speed machining centers will find this part essential for applications that require through-spindle or external coolant delivery on HSK100A tooling setups.

This cooling tube is intended for use in CNC machining environments where HSK100A taper shrink fit chucks are in service. HSK100A is a large-flange hollow-shank taper commonly found on heavy-duty horizontal and vertical machining centers. The 85.700.10 is suited to shops running high-feed or high-speed milling, drilling, and boring operations where thermal management at the cutting interface is a production requirement. It is a lightweight component at 0.03 pounds and fits within the compact dimensional envelope of standard HSK100A shrink fit toolholder assemblies.

Key Features

• Compatible with HSK100A taper shrink fit chuck toolholders
• Directs coolant flow to the cutting zone for thermal control during machining
• Lightweight construction at 0.03 pounds for minimal impact on toolholder balance
• Compact form factor: 3 inches long, 2 inches wide, 1 inch height
• Sold individually with a minimum order quantity of one

Compatibility

Designed for use with HAIMER shrink fit chuck toolholders using the HSK100A taper size. Specific cross-compatible toolholder model numbers beyond the HSK100A taper designation were not provided in the product data.

Installation Notes

Installation of this cooling tube should be performed by a qualified toolroom technician or CNC setup specialist. Before handling or replacing any toolholder accessory, confirm the machine spindle is fully stopped, the coolant supply is shut off, and all energy sources are locked out per facility LOTO procedures. Consult the HAIMER toolholder assembly documentation to confirm correct seating and orientation of the cooling tube within the HSK100A toolholder body before returning the assembly to service.
