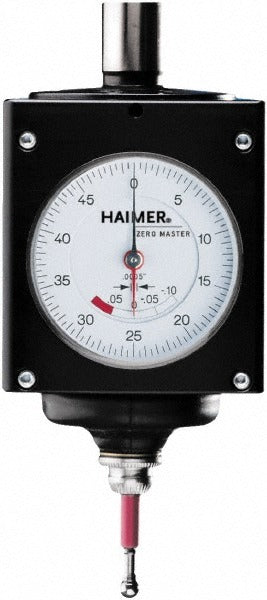

Haimer 80.960.00.IN Dial Positioning Indicator 10mm

Product Description

The HAIMER 80.960.00.IN is a dial positioning indicator designed for precise workpiece location and setup verification on machine tools and inspection fixtures. It features a 10mm straight shank for direct mounting in standard tool holders or collet chucks. Accuracy is rated at 0.0004 inches with a 0.01mm graduation scale, allowing reliable detection of minor positional deviations. The analog dial face provides an immediate visual reference without electronics. Built to IP67, the indicator resists coolant, chips, and washdown common in production machining environments. Machinists, toolroom technicians, and CNC setup operators are the primary users.

This indicator is suited for use on machining centers, milling machines, and inspection stations where workpiece alignment, fixture location, or part runout must be confirmed before a cutting cycle begins. The 0.2-inch point diameter contacts the workpiece surface and is sized for use on flat datums, bores, and stepped features. Its straight shank mounts directly in a spindle or an arm-type magnetic base holder. It is appropriate for both production floor and toolroom applications where analog readout is preferred over digital.

Key Features

• 0.0004 inch accuracy for precise positional verification
• 0.01mm graduation for fine incremental readings
• 10mm straight shank compatible with standard tool holders and collet chucks
• 0.2 inch point diameter suited for flat and contoured datum surfaces
• IP67 rated - fully protected against coolant immersion and chip ingress
• Analog dial face for immediate visual readout without battery or power source
• Capable of measuring large workpieces per manufacturer application notes

Compatibility

Designed for use with standard 10mm straight shank tool holders, collet chucks, and magnetic base indicator arms used in machining and inspection applications.

Installation Notes

Installation is performed by machinists or toolroom technicians. Power down or lock out any CNC spindle before seating the shank in a collet or tool holder. Tighten the holder to the tool manufacturer's standard procedure for 10mm shanks - do not over-clamp the shank body. When mounted in a magnetic base arm, confirm the base is fully energized and stable before zeroing the dial against a reference surface.
