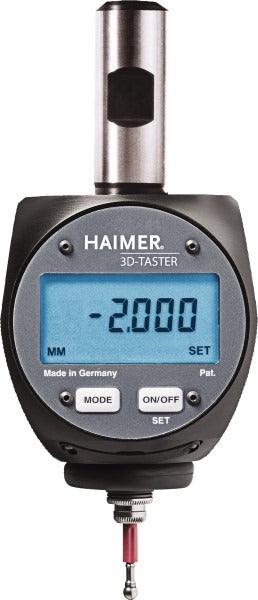

Haimer 80.460.00.IN Electronic Positioning Indicator

Product Description

The HAIMER 80.460.00.IN is an electronic positioning indicator designed for precise workpiece and fixture location in machine tool setups. It features a 0.75 inch straight shank for direct mounting in spindles or tool holders, a 0.2 inch point diameter tip, and a resolution of 0.000050 inches for high-accuracy centering and edge-finding tasks. The digital readout provides clear numerical feedback, making it faster and more reliable than dial-type alternatives. Rated IP64, the unit resists coolant splash and airborne particulates, which is essential in a production machining environment. Machinists, CNC setup techs, and toolroom operators are the primary users of this instrument.

This indicator is suited for use on CNC machining centers, manual mills, and jig borers where repeatable positioning of the spindle centerline to a workpiece datum is required. It is used during setup operations to locate bores, edges, and reference surfaces quickly. The IP64 splash-proof and dustproof rating makes it practical on the shop floor without requiring special protective handling between uses. Its 0.0002 inch accuracy rating supports close-tolerance work across general precision machining and toolroom applications.

Key Features

• Resolution of 0.000050 inches for fine positioning feedback
• Accuracy rated at 0.0002 inches
• 0.75 inch straight shank mounts directly in standard spindles or tool holders
• 0.2 inch point diameter tip for bore and edge location
• IP64 rated - splash-proof and dustproof for shop floor use
• Easy-to-read digital numeric display for fast spindle centering

Compatibility

Designed for use in any machine spindle or tool holder accepting a 0.75 inch straight shank, consistent with standard toolroom and CNC machining center setups.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down or place the machine in a safe state before inserting or removing the indicator from the spindle. Secure the shank firmly in the collet or chuck to the tool holder manufacturer's specified clamping procedure. Avoid dropping or impacting the tip, as precision measuring instruments are sensitive to shock damage even when rated for shop environments.
