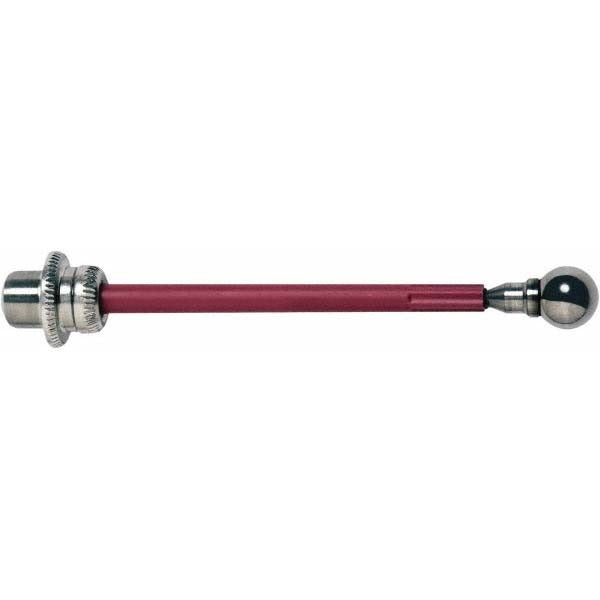

Haimer 80.363.00 Metric Long Probe Tip 3D Sensor

Product Description

The HAIMER 80.363.00 is a metric long probe tip designed for use with the HAIMER Universal 3D Sensor system. This precision replacement tip threads into the 3D Sensor body and extends the sensor's reach for workpiece edge-finding, center-finding, and datum-setting operations on milling machines and machining centers. The long configuration provides access to features that the standard short tip cannot reach, making it a practical addition to any toolroom or production environment. Machinists and CNC setup technicians are the primary users of this component.

This probe tip is intended for use with the HAIMER Universal 3D Sensor, including configurations that incorporate the integrated short adapter. It is suited for metric measurement setups on vertical and horizontal machining centers, knee mills, and jig borers where precise workpiece location is required. The long tip geometry allows datum setting in deeper pockets, recesses, or stepped surfaces that would obstruct a standard-length tip.

Key Features

• Metric long-reach configuration for access to deep features and pockets
• Designed as a direct replacement tip for the HAIMER Universal 3D Sensor system
• Compatible with 3D Sensor configurations using the integrated short adapter
• Lightweight at 0.01 pounds for minimal sensor loading during probing operations
• Sold individually - minimum order quantity of 1

Compatibility

Designed for use with the HAIMER Universal 3D Sensor. Compatible with 3D Sensor New Generation configurations that include the Integrated Short Adapter. Also references fitment alongside the Short Probe Tip with a 4 mm diameter.

Installation Notes

Installation is performed by the machinist or CNC setup technician at the machine tool. Before replacing the probe tip, ensure the 3D Sensor is removed from the spindle and the machine is powered down or the spindle is locked out per shop safety procedures. Thread the long probe tip into the sensor body by hand and tighten only to the manufacturer-specified method - do not use excessive force, as probe tips are precision components with fine threads. Verify runout and sensor function before returning the tool to service.
