Haimer 80.360.00.IN Dial Positioning Indicator 3/4 in Shank

Product Description

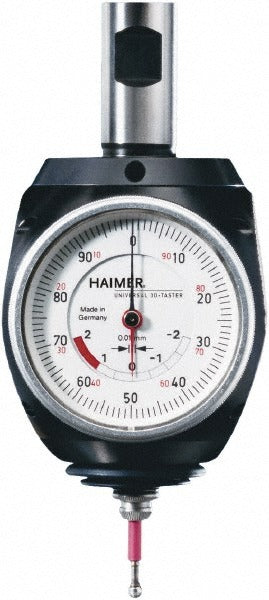

The HAIMER 80.360.00.IN is a dial positioning indicator designed for precise edge-finding and workpiece location in machining and toolroom environments. It features a 0.0004-inch graduation for high-accuracy positioning, a 3/4-inch straight shank for standard spindle mounting, and a 0.2-inch point diameter for contact with workpiece edges and datums. The indicator is fully adjustable to zero without re-calibration, reducing setup time between jobs. Rated IP67, it is sealed against coolant ingress and fine particulate contamination. Machinists, toolroom technicians, and CNC setup personnel are the primary users of this instrument.

The 80.360.00.IN is suited for use in milling, boring, and grinding operations where repeatable edge-finding and datum location are required. It mounts directly in a machine spindle via its 3/4-inch straight shank, making it compatible with standard collet chucks and tool holders of that bore size. The instrument is appropriate for both manual knee mills and CNC machining centers. Its versatile design supports a wide range of fixturing and workholding setups in production and toolroom settings.

Key Features

• 0.0004-inch graduation for high-resolution positioning accuracy
• 3/4-inch straight shank for direct spindle or collet chuck mounting
• 0.2-inch point diameter for consistent edge and datum contact
• Fully adjustable to zero with no re-calibration required, reducing setup time
• IP67-rated sealing provides protection against coolant and particulate ingress
• Versatile edge-finding capability across multiple workholding configurations

Compatibility

Designed for use with standard 3/4-inch straight-shank collet chucks and tool holders in milling, boring, and grinding machine spindles.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before mounting, power down or deactivate spindle rotation and confirm the machine is in a safe state. Insert the 3/4-inch straight shank into a clean, properly sized collet or tool holder and secure per the tool holder manufacturer's clamping procedure. Verify runout and indicator movement before bringing the spindle into contact with the workpiece datum.
