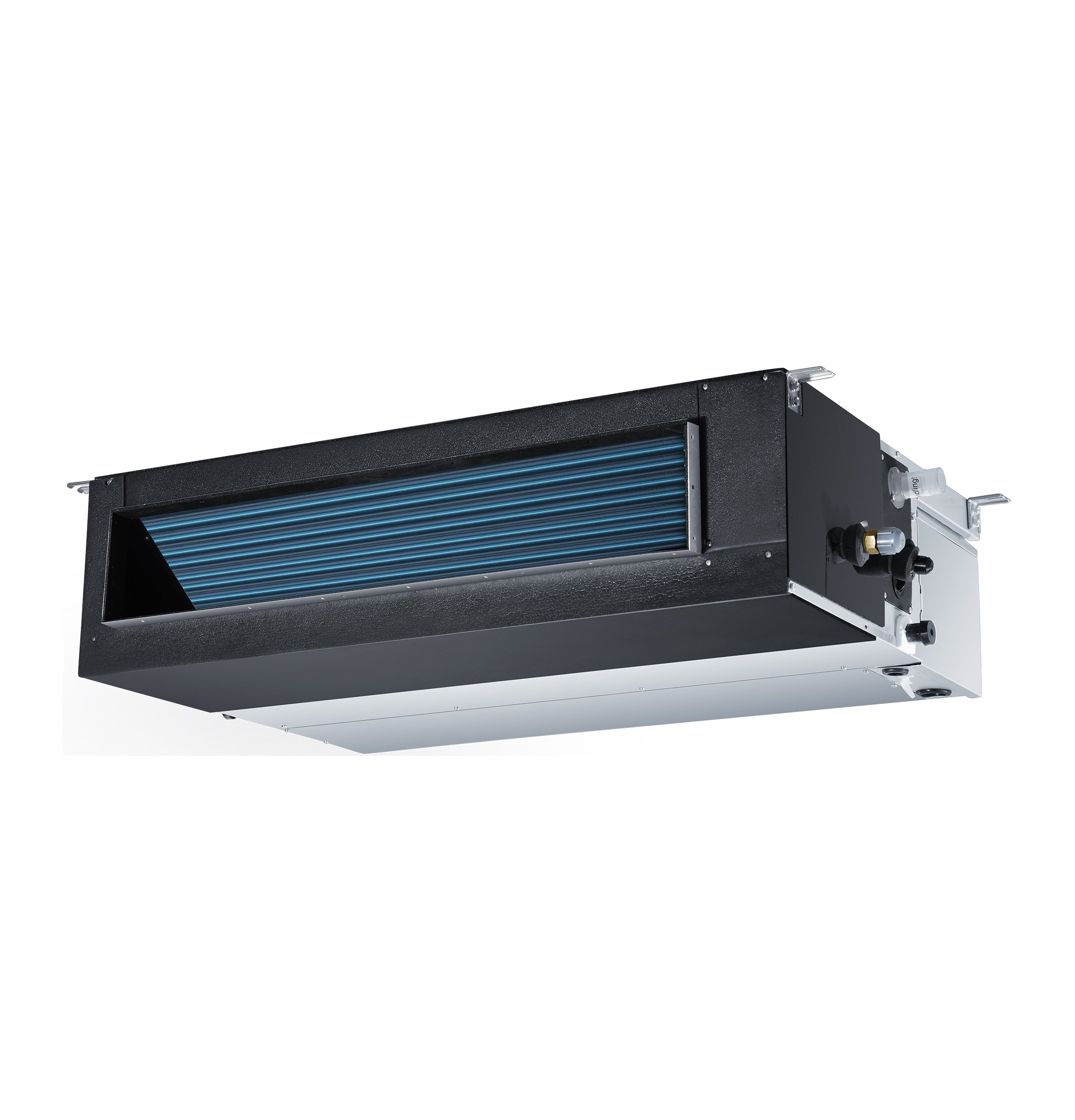

Haier USYM18UCDSA Ductless Mid-Static Ducted Indoor Unit 208-230V

Product Description

The Haier USYM18UCDSA is a ductless indoor unit that operates at 208-230V with a cooling capacity of eighteen thousand BTU. This unit is compatible with select Single and Multi Zone Outdoor Units and is designed for static pressure up to 0.6 inch wg. The system accommodates longer ductwork, making it suitable for various installation scenarios. The built-in WiFi feature enables smart monitoring and control through the SmartHQ application, along with compatibility for voice controls using Amazon Alexa and Google Home.

• Compatible with various Single and Multi Zone Outdoor Units
• Includes a built-in condensate pump for efficient drainage
• WiFi connectivity allows for remote management via the SmartHQ app

Product Highlights

This indoor unit is designed to offer cooling solutions in both residential and commercial settings, featuring a robust design and advanced technology for optimal performance.

Product Information

Standard Information

• Color Appearance: White
• Voltage/Hertz/Phase: 208-230/60/1

Technical Specifications

• Cooling Rated Capacity BTU/Hr: 18,000
• Liquid O.D. Refrigerant Line: 1/4 inch
• Net Weight: 77 lb
• Overall Depth: 27.5 inches
• Overall Height: 9.75 inches
• Overall Width: 43.25 inches
• Suction O.D. Refrigerant Line: 1/2 inch
• Drainpipe Size: 0.625 inches
• Fan Speeds CFM: 735, 635, 541, 470, 400
• Indoor Sound Level: 48 dBA, 45 dBA, 42 dBA, 39 dBA, 36 dBA
• Internal Condensate Pump: Standard
• Max. Drain-Lift Height: 39.375 inches
• Max. External Static Pressure: 0.6
• Product Type: Single Zone, Multi Zone
• Series: Indoor Units (Compatible with Select Series)
• Style: Mid-Static Ducted
• Unit Type: Indoor
• WiFi Connect: Built-In
• SmartHQ Home Built-In: Yes
• Parts Warranty: 5-Year limited parts warranty, 10-Year registered limited parts warranty
