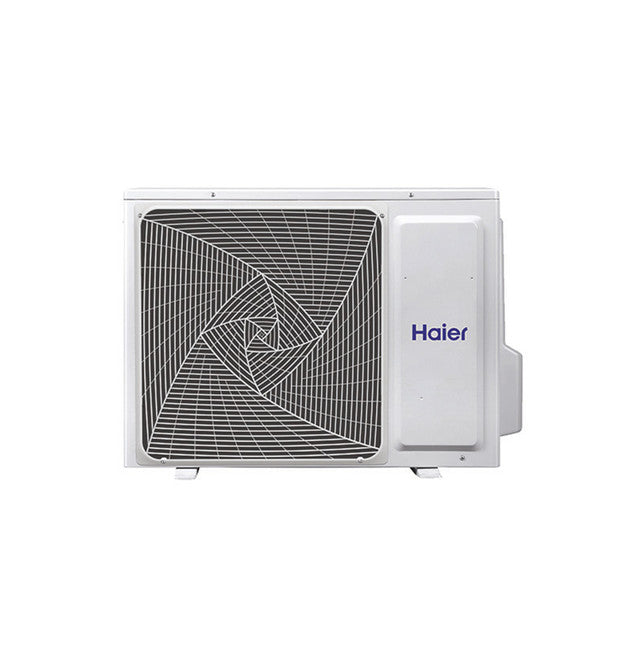

Haier 1U18AP2HDB Advanced Plus Series 18,000 BTU Ductless Mini-Split Outdoor Heat Pump System

Product Description

The Haier 1U18AP2HDB is an advanced plus series ductless mini-split outdoor heat pump system with a cooling capacity of eighteen thousand BTU. This system utilizes A-PAM DC inverter technology for performance and comfort. The blue fin design promotes efficient heat exchange and water drainage.

• High Efficiency Ductless Heat Pump
• A-PAM DC Inverter for high performance
• Blue Fin design for optimized water flow

Product Highlights

This outdoor heat pump provides both heating and cooling functions, making it versatile for various climates.

Product Information

Standard Information

• Color Appearance: White
• Product Type: Single Zone

Technical Specifications

• Cooling Rated Capacity BTU/Hr: 17,000
• Minimum Circuit Amp: 14
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4 inches
• Net Weight: 97.7 pounds
• Overall Depth: 13.875 inches
• Overall Height: 27.4375 inches
• Overall Width: 35 inches
• Suction O.D. Refrigerant Line: 1/2 inches
• Base Pan Heater: Standard
• Compatible Indoor Models: AW18AP2HDB
• Connections: Flare
• Maximum Height (Ft/m): 50/15
• Maximum Line Length (Ft/M): 83/25
• Outdoor Noise Level: 55 dBA
• Rotary Compressor: DC Inverter Driven Rotary
• Temperature Range - Cooling Mode: 14-115 F (-10-46 C)
• Temperature Range - Heating Mode: -15-75 F (-26-24 C)
• Unit Type: Outdoor
