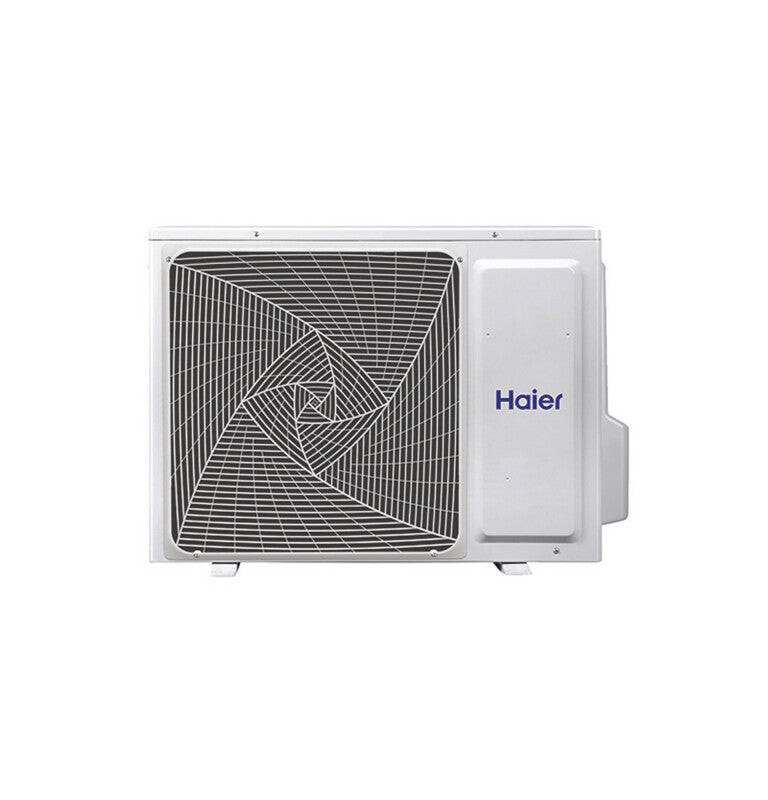

Haier 1U12AP2HDB Advanced Plus Series 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System

Product Description

The Haier 1U12AP2HDB Advanced Plus Series is a high-efficiency ductless heat pump with an A-PAM DC inverter. It features Blue Fin technology and is designed with dimensions of 23.5 H x 30.6875 W x 11.4375 D. Compatible with AW12AP2HDB indoor models, this single-zone system ensures efficient cooling and heating.

• High Efficiency Ductless Heat Pump
• A-PAM DC Inverter for high performance and maximum comfort
• Blue Fin: A hydrophilic aluminum fin ensures condensing water flows smoothly

Product Highlights

This Haier outdoor unit provides efficient and quiet operation, with low ambient heating down to -15F and a base pan heater to prevent freezing.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: 1U12AP2HDB

Technical Specifications

• Color Appearance: White
• Cooling Rated Capacity BTU/Hr: 12,000
• Minimum Circuit Amp: 11
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Net Weight: 79.4 lb
• Overall Depth: 11.4375 in
• Overall Height: 23.5 in
• Overall Width: 30.6875 in
• Suction O.D. Refrigerant Line: 3/8"
• Base Pan Heater: Standard
• Compatible Indoor Models: AW12AP2HDB
• Connections: Flare
• Factory Charge (ounces): 38.8
• Maximum Fuse Size A: 15
• Maximum Height (Ft/m): 33/10
• Maximum Line Length (Ft/M): 50/15
• Outdoor Noise Level: 54 dBA
• Product Type: Single Zone
• Rotary Compressor: DC Inverter Driven Rotary
• Series: Advanced Plus
• Style: Outdoor
• System: 12K Advanced Plus
• Temperature Range - Cooling Mode: 14-115 F (-10-46 C)
• Temperature Range - Heating Mode: -15-75 F (-26-24 C)
• Unit Type: Outdoor
