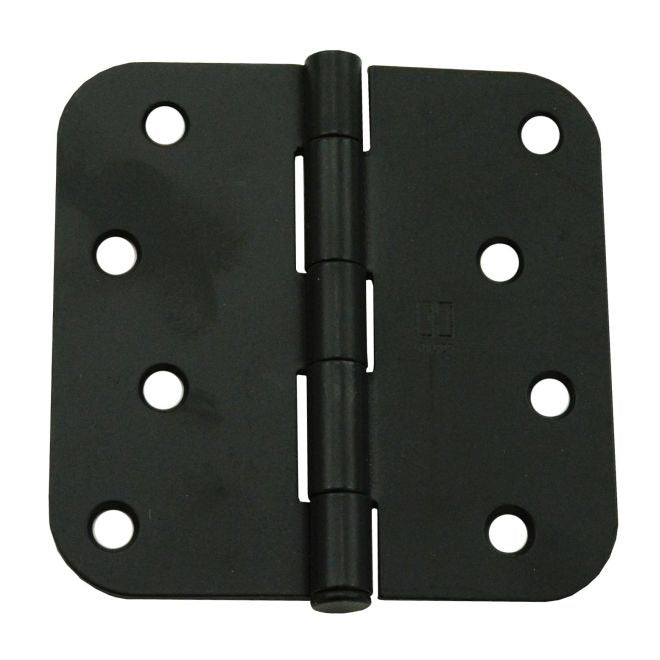

Hager Hinge RC184241DEA58 Full Mortise Plain Bearing Hinge

Product Description

The HAGER HINGE RC184241DEA58 is a full mortise, plain bearing residential door hinge with a 5/8-inch radius corner profile and a dull black finish. Designed for standard interior and light-duty exterior residential door applications, this hinge measures 4 inches x 4 inches and is built to provide smooth, reliable pivot operation over repeated cycles. The plain bearing design suits residential traffic loads where heavy-duty or ball-bearing construction is not required. At 0.5 pounds, it is a lightweight unit appropriate for pre-hung and retrofit door installations carried out by carpenters, general contractors, and door hardware installers.

This hinge is suited for residential mortise door applications where a 4 inches x 4 inches full mortise hinge with a 5/8-inch radius is specified. The dull black finish coordinates with contemporary and transitional hardware finishes common in residential new construction and remodel work. It is sold individually and is also available in case quantities of 50 units, making it practical for both single-door repairs and larger multi-unit projects.

Key Features

• Full mortise design for flush, clean installation into door edge and frame
• Plain bearing construction suited for residential-grade door traffic
• 4 inches x 4 inches leaf size meets common residential door hinge specifications
• 5/8-inch radius corner profile for standard mortise cutout compatibility
• Dull black finish for a low-sheen, modern appearance
• Lightweight at 0.5 pounds per unit

Compatibility

Designed as an OEM-style replacement or new-installation hinge for residential full mortise door applications requiring a 4 inches x 4 inches plain bearing hinge with a 5/8-inch radius corner.

Installation Notes

Full mortise hinges are installed by routing or chiseling a matching mortise pocket into both the door edge and the door frame jamb. Power should be off to any electric strike or access control hardware associated with the door before beginning work. A drill, chisel, and hinge mortise template are standard tools for this application. Verify that the radius of the mortise cutout matches the 5/8-inch radius of this hinge leaf before final installation.
