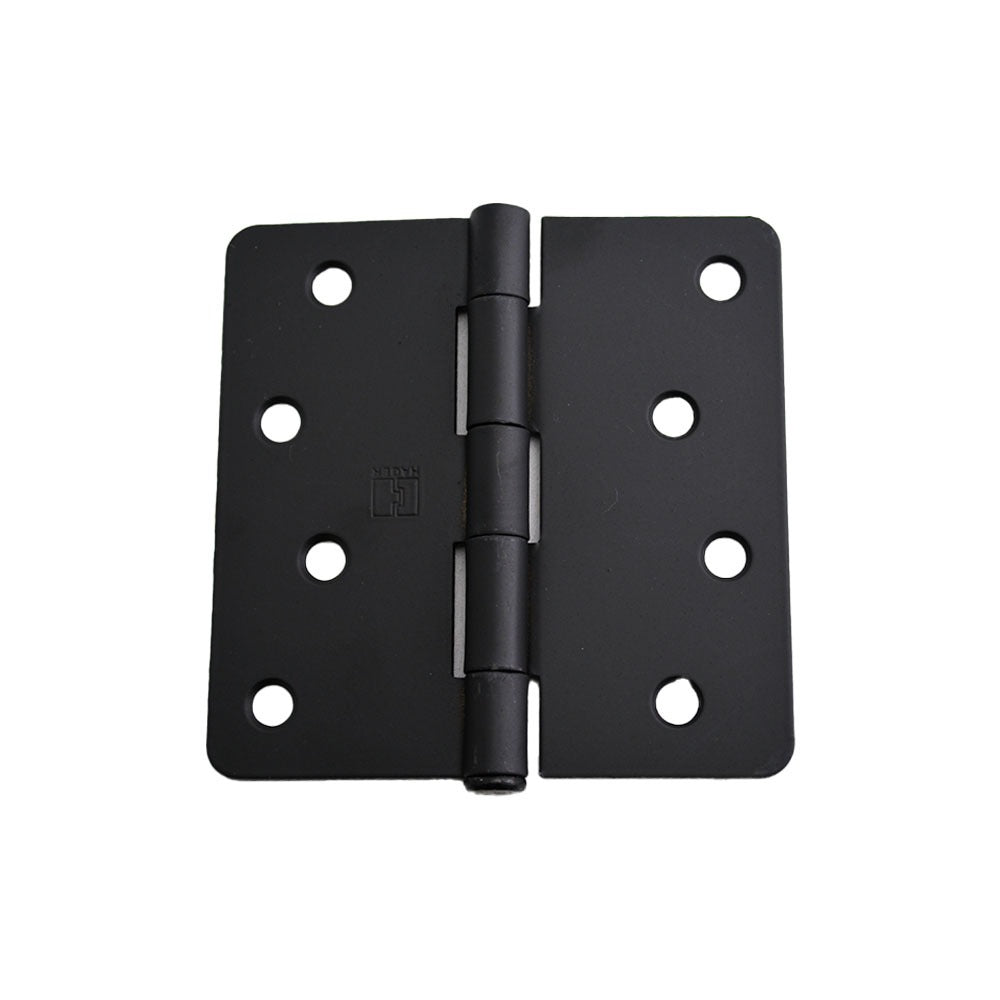

Hager Hinge RC174141DEA14 Full Mortise Hinge 4x4 Dull Black

Product Description

The HAGER HINGE RC174141DEA14 is a full mortise plain bearing hinge designed for residential door installations. It features a 4-inch by 4-inch leaf profile with a 1/4-inch radius corner and a dull black finish suited for interior and exterior residential applications. This hinge is a plain bearing design, meaning it relies on direct metal-to-metal contact between the knuckles rather than a ball bearing insert, making it appropriate for standard-frequency residential doors. Installation is performed by carpenters, general contractors, and door hardware technicians during new construction or replacement projects.

This hinge is intended for residential door applications where a full mortise mounting style is required. Full mortise hinges are recessed into routed pockets in both the door edge and the door frame, providing a flush, clean appearance when installed. The dull black finish suits applications where a matte dark hardware finish is specified. It is sold individually and is also available in case quantities of 50 units for larger projects.

Key Features

• Full mortise design for flush, recessed installation into door edge and frame
• Plain bearing construction suitable for standard-use residential doors
• 4-inch x 4-inch leaf dimensions for typical residential door weight ranges
• 1/4-inch radius corner profile for a traditional, softened corner appearance
• Dull black finish provides a matte, non-reflective surface
• Sold as a single unit (EA) with case quantity of 50

Compatibility

Designed as an OEM-style replacement or new-installation plain bearing hinge for standard residential full mortise door applications requiring a 4-inch x 4-inch hinge with a 1/4-inch radius corner in a dull black finish.

Installation Notes

Full mortise hinges require precise router or chisel work to cut matching mortise pockets in the door edge and door jamb before installation. Installers should verify door weight and frequency rating prior to selecting a plain bearing hinge for the application. Power down any associated access control or electric strike hardware before servicing door frames. Fastener holes should be aligned carefully to avoid door hinge binding or misalignment after installation.
