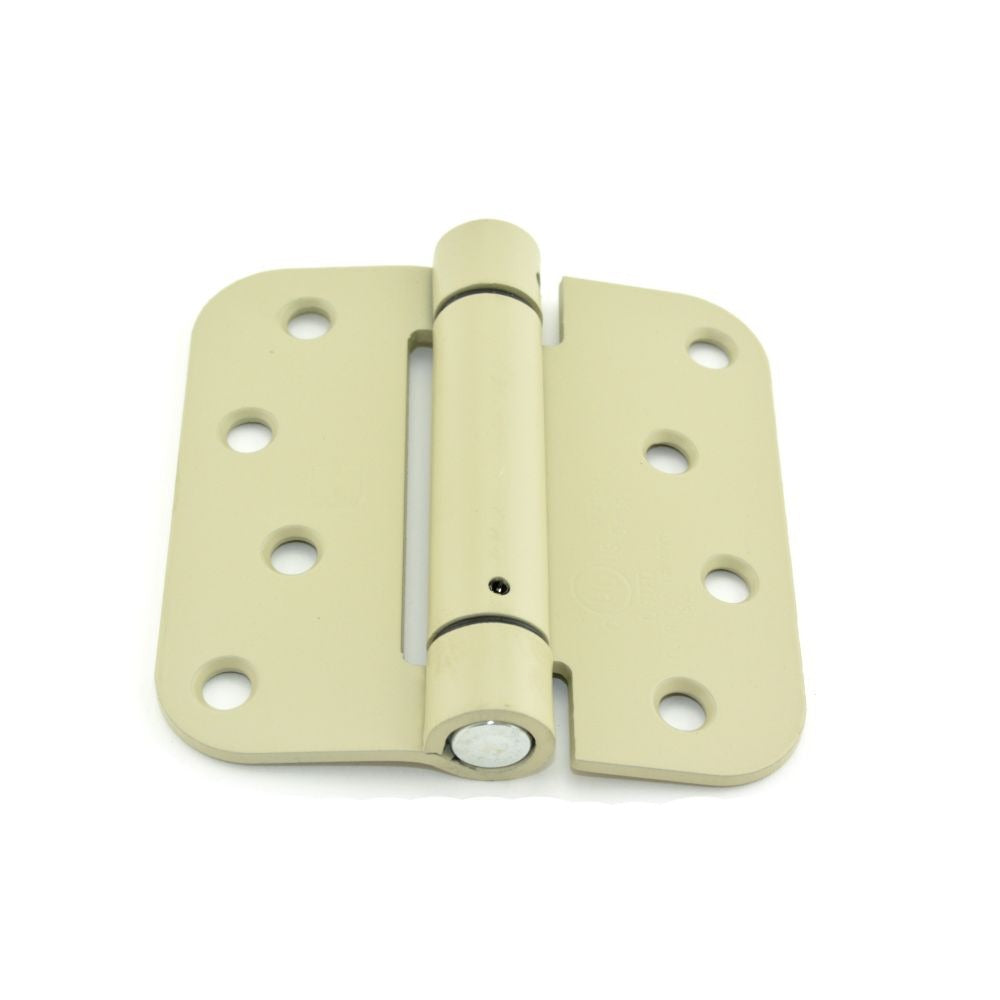

Hager Hinge 17524P Full Mortise Spring Hinge 4x4 Steel

Product Description

The HAGER HINGE 17524P is a full mortise residential spring hinge designed for standard door applications requiring automatic self-closing action. Built from steel with a prime coat finish, this hinge measures 4 inches x 4 inches with a 5/8 inch radius corner profile. The spring mechanism provides consistent closing force without the need for a separate door closer, making it a practical choice for interior residential doors. Licensed carpenters, door hardware installers, and general contractors install this type of hinge as part of new construction and retrofit projects. It ships and must be ordered in multiples of 2.

This hinge is suited for residential full mortise door installations where a self-closing function is required. Full mortise hinges are recessed into both the door edge and the door frame, providing a clean, flush appearance once installed. The prime coat finish is ready for field painting, allowing the installer to match the hinge to the surrounding door hardware and trim. This product is sold individually per each unit.

Key Features

• Full mortise design recesses flush into door edge and frame for a clean finished look
• Integrated spring mechanism provides automatic self-closing action without a separate closer
• 4 inches x 4 inches leaf size with 5/8 inch radius corners for standard residential door prep
• Steel construction for durability in everyday residential applications
• Prime coat finish ready for field painting to match surrounding hardware
• Must be ordered in multiples of 2

Compatibility

Designed as an OEM-style replacement or new-installation full mortise spring hinge for standard residential doors requiring a 4 inches x 4 inches mortise cutout with 5/8 inch radius corners.

Installation Notes

Installation is typically performed by a licensed carpenter or door hardware installer using a chisel and drill to prepare the mortise pocket in both the door edge and frame jamb. Ensure the door is removed or secured before beginning mortise work. Because this is a spring hinge, the spring tension should be adjusted with the appropriate hinge pin tool after the door is hung and before final testing of the closing action. Follow local building codes for self-closing door requirements where applicable.
