Hager Hinge 175243 Full Mortise Spring Hinge Steel Bright Brass

Product Description

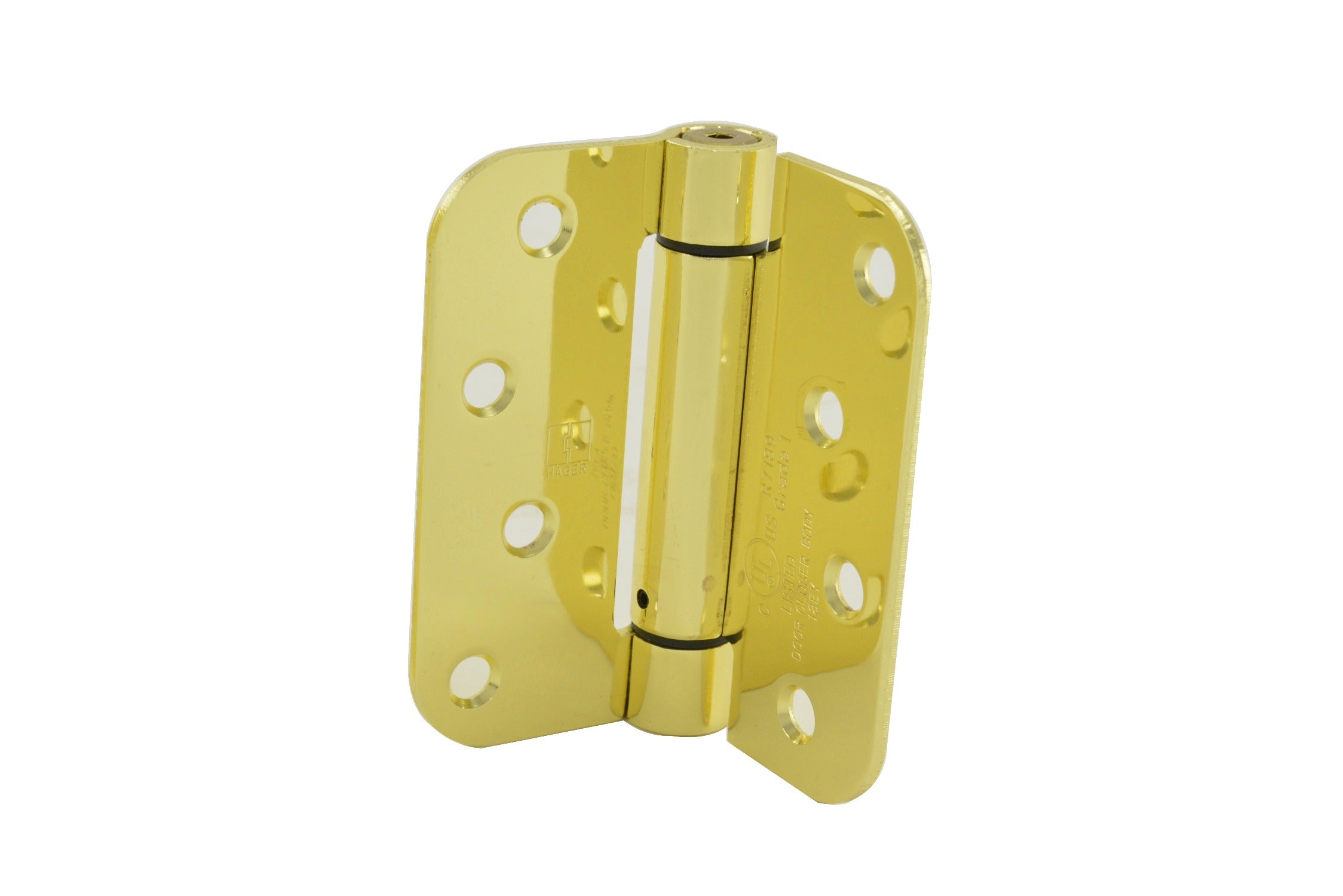

The HAGER HINGE 175243 is a full mortise residential spring hinge designed for standard door installations where self-closing action is required. Built from steel with a Bright Brass finish, this hinge measures 4 inches x 4 inches with a 5/8-inch radius corner profile. The integrated spring mechanism provides controlled door closure without the need for a separate closer, making it a practical choice for interior residential applications. Licensed contractors and finish carpenters typically install this hinge as part of a complete door hardware package on pre-hung or site-hung door assemblies.

This hinge is suited for residential door applications where a self-closing function is needed, such as entry points between living spaces and garages, utility rooms, or other areas requiring code-compliant door closure. The full mortise design requires a routed recess in both the door edge and the frame, providing a flush, clean appearance once installed. It ships and must be ordered in multiples of 2 to ensure proper door function, as spring hinges are typically installed in pairs.

Key Features

• Full mortise design for flush, recessed installation on door edge and frame
• Integrated spring mechanism provides self-closing action without a separate door closer
• Steel construction with Bright Brass finish for durability and a traditional aesthetic
• 5/8-inch radius corner profile for compatibility with standard residential door prep
• 4 inches x 4 inches leaf size suitable for typical residential door weight and thickness
• Must be ordered in multiples of 2 to ensure correct pairing per door

Compatibility

Designed as an OEM-style replacement or new-installation spring hinge for standard residential full mortise door applications requiring a 4 inches x 4 inches hinge with a 5/8-inch radius corner.

Installation Notes

Installation of full mortise spring hinges requires precise mortise routing on both the door edge and the door frame jamb; a sharp chisel and router are standard tools for this work. Power down or disengage any electronic access control hardware before servicing the door assembly. Spring tension on self-closing hinges should be adjusted carefully per the manufacturer's tension adjustment procedure to avoid injury from uncontrolled closure. This product is typically installed by a licensed carpenter, door hardware installer, or general contractor in compliance with applicable local building codes.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
