H2FLOW Controls fv-8-l Flowvis Flow Meter 8 Inch SCH80

Product Description

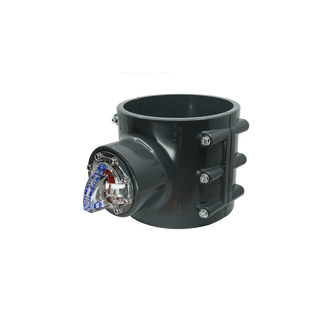

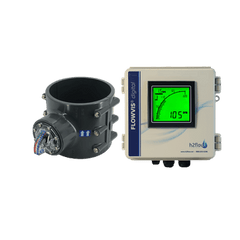

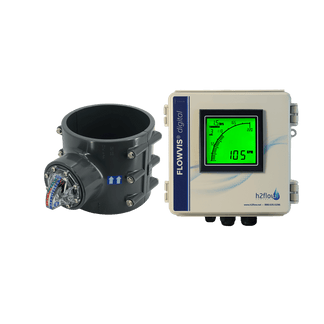

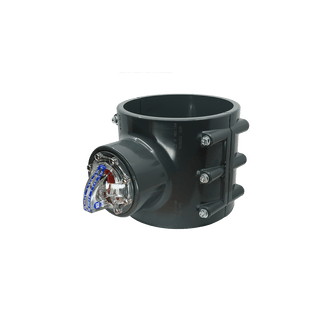

The H2FLOW CONTROLS fv-8-l is a precision flow meter designed for accurate, reliable flow measurement in gray water and potable water systems. This complete kit includes an 8-inch FlowVis Saddle Clamp rated for Schedule 80 pipe and a FlowVis Digital display unit. The fv-8-l is rated to 50 psi and measures flow in liters per minute (LPM). Its patented design eliminates the need for straight-pipe run clearances before or after the meter, making it practical in tight mechanical spaces where conventional flow meters cannot be installed. Licensed plumbers and pool service technicians are the primary installers.

The fv-8-l is suited for residential and commercial plumbing applications where flow monitoring of gray water or potable water is required. The saddle clamp mount fits 8-inch Schedule 80 pipe and the meter can be oriented horizontally, vertically, or inverted to accommodate nearly any pipe routing configuration. Pool and spa circulation systems, irrigation distribution mains, and commercial water treatment installations are typical deployment environments for a meter of this size and pressure rating.

Key Features

• Patented design requires no straight-pipe run upstream or downstream
• Installs horizontally, vertically, or inverted for flexible placement
• 50 psi pressure rating suitable for standard potable and gray water systems
• Flow measurement displayed in liters per minute (LPM) via included digital display
• Saddle clamp mount sized for 8-inch Schedule 80 pipe
• Compatible with both gray water and potable water applications

Compatibility

Designed for use with 8-inch Schedule 80 pipe in gray water and potable water plumbing systems. The saddle clamp mounting style is intended as a direct-fit installation on SCH80 pipe without requiring pipe cutting or inline fitting modifications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pool service technician in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and relieve system pressure fully before mounting the saddle clamp or making any connections. Verify pipe schedule and outside diameter match the clamp rating before tightening hardware. Do not exceed the 50 psi pressure rating of this assembly.

Technical Specifications

• Pipe Size: 8 inches
• Pipe Schedule: Schedule 80 (SCH80)
• Pressure Rating: 50 psi
• Flow Scale: LPM (Liters Per Minute)
• Mount Type: Saddle Clamp
• Included Components: FlowVis Saddle Clamp, FlowVis Digital Display
• Application: Gray water and potable water

Standard Information

• Brand: H2FLOW CONTROLS
• Manufacturer Part Number: fv-8-l
