H R Manufacturing HR-115-2.5-A Soft Lathe Chuck Jaw

Product Description

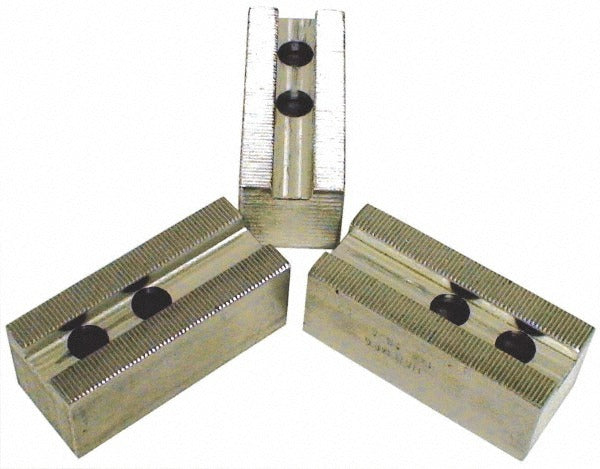

The H R MANUFACTURING HR-115-2.5-A is a soft lathe chuck jaw designed for use with 3-jaw lathe chucks. Made from 6061 aluminum, this serrated-interface jaw measures 6.5 inches in overall length and 2.5 inches in overall width. Soft jaws are machinable to custom bore diameters, allowing machinists to achieve precise, repeatable workholding for turned parts. The serrated jaw interface mates with the chuck master jaw serrations to ensure positive, non-slip engagement under cutting loads. At 2.89 pounds per set, this jaw set is lightweight and easy to handle during changeover.

Soft lathe chuck jaws are installed on manual and CNC engine lathes in machine shops, toolrooms, and production turning cells. They are used when workholding requires a bored or faced jaw surface to grip irregular, finished, or delicate workpieces without marring. The square jaw shape suits standard 3-jaw scroll chucks. Machinists typically bore the jaw set in place on the chuck to achieve true, concentric grip for a specific workpiece diameter or profile.

Key Features

• Serrated jaw interface for secure, indexed engagement with chuck master jaws
• 6061 aluminum construction - easily machinable to custom bore diameters
• 6.5-inch overall length provides substantial gripping face for boring and facing operations
• 2.5-inch overall width suits standard 3-jaw chuck configurations
• 1.69-inch distance between mount hole centers for consistent, repeatable installation
• 1.0-inch groove width for compatibility with standard master jaw serration profiles

Compatibility

Compatible with 3-jaw lathe chucks with a 15.0-inch chuck diameter and a serrated master jaw interface with 1.0-inch groove width and 20 mm fastener size. Designed as a set of 3 jaws.

Installation Notes

Soft lathe chuck jaw installation and boring should be performed by a qualified machinist or CNC lathe operator. Power down and lock out the lathe before mounting or removing jaws. Secure all jaw mounting fasteners to chuck manufacturer specifications before operation. Bore the jaws in place on the chuck to ensure concentricity - never machine jaws off the chuck and expect true runout performance.
