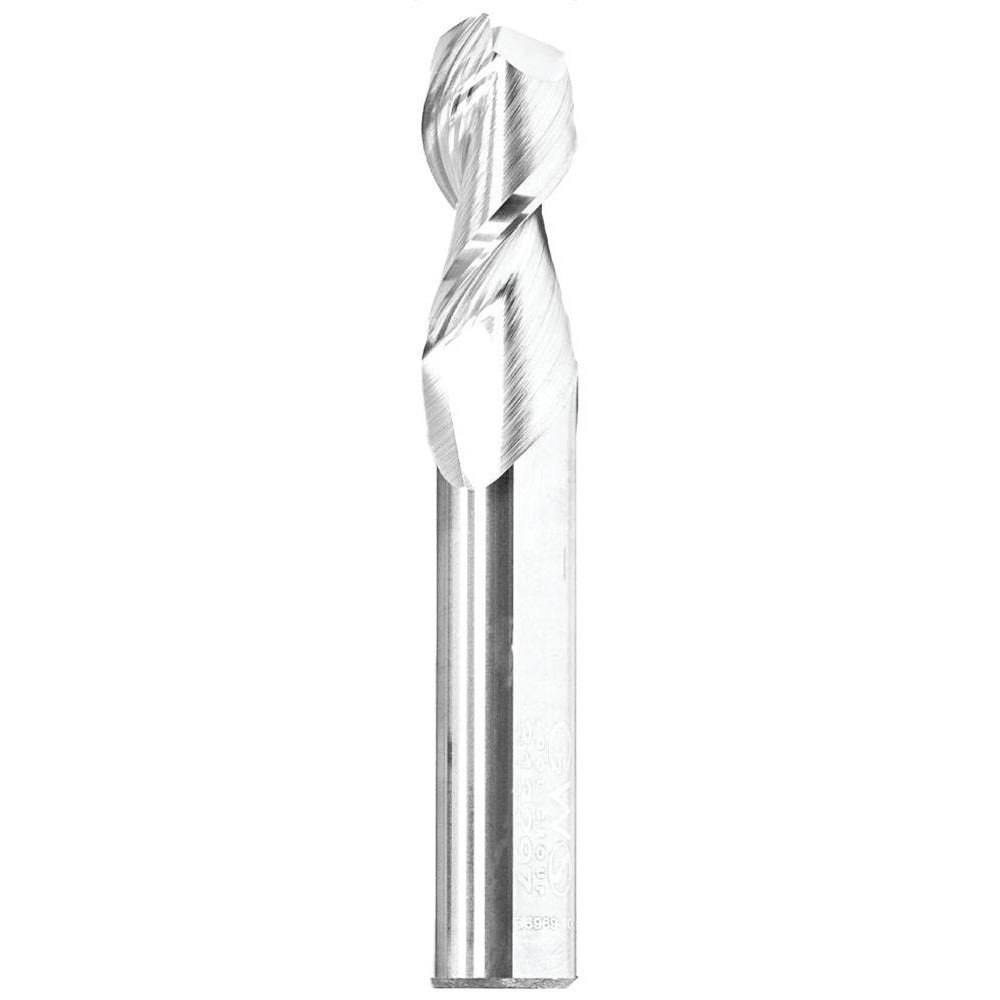

Gws 313044 Corner Radius End Mill 1/4 in 2 Flute Carbide

Product Description

The GWS 313044 is a single-end corner radius end mill designed for precise milling operations in non-ferrous metals and similar materials. Built from submicron-grade solid carbide, this tool features a 1/4 inch diameter cutting end, a 0.015 inch corner radius, and a 3/4 inch length of cut. The ZrN (zirconium nitride) coating reduces friction and extends tool life in non-ferrous applications. The high-helix, right-hand helical flute geometry promotes efficient chip evacuation during roughing passes. Two flutes and a coarse pitch make this tool well-suited for aggressive material removal rates in aluminum, copper, brass, and similar workpiece materials.

This end mill is intended for use in machining operations targeting non-ferrous metals, as indicated by its N-grade material classification and submicron carbide substrate. The centercutting design allows both plunge and peripheral cutting. With a 1/4 inch straight cylindrical shank (h6 tolerance) and a 2.5 inch overall length, this tool fits standard end mill holders and is a practical choice for CNC machining centers and manual mills running non-ferrous material stock.

Key Features

• Submicron-grade solid carbide construction for rigidity and wear resistance
• ZrN coating optimized for non-ferrous metal cutting applications
• 0.015 inch corner radius reduces edge chipping and improves surface finish at corners
• Centercutting design allows direct plunge entry into workpiece material
• High-helix helical flute geometry promotes efficient chip evacuation
• Straight cylindrical shank with h6 tolerance for secure, precise tool holder fit

Compatibility

Designed for use with standard end mill holders. Primary workpiece material is non-ferrous metal. Suitable for use in CNC machining centers and manual milling machines accepting a 1/4 inch straight shank tool.

Installation Notes

This tool is installed and serviced by machinists and CNC operators. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully in the end mill holder and torque the retention hardware to the holder manufacturer's specification. Inspect the corner radius and cutting edges for chips or wear before each use, particularly after roughing passes in abrasive materials.
